combustible toxic multi-4 gases voice type pumped gas leakage detector for piping checking ,confined space
Product Brief introduction:

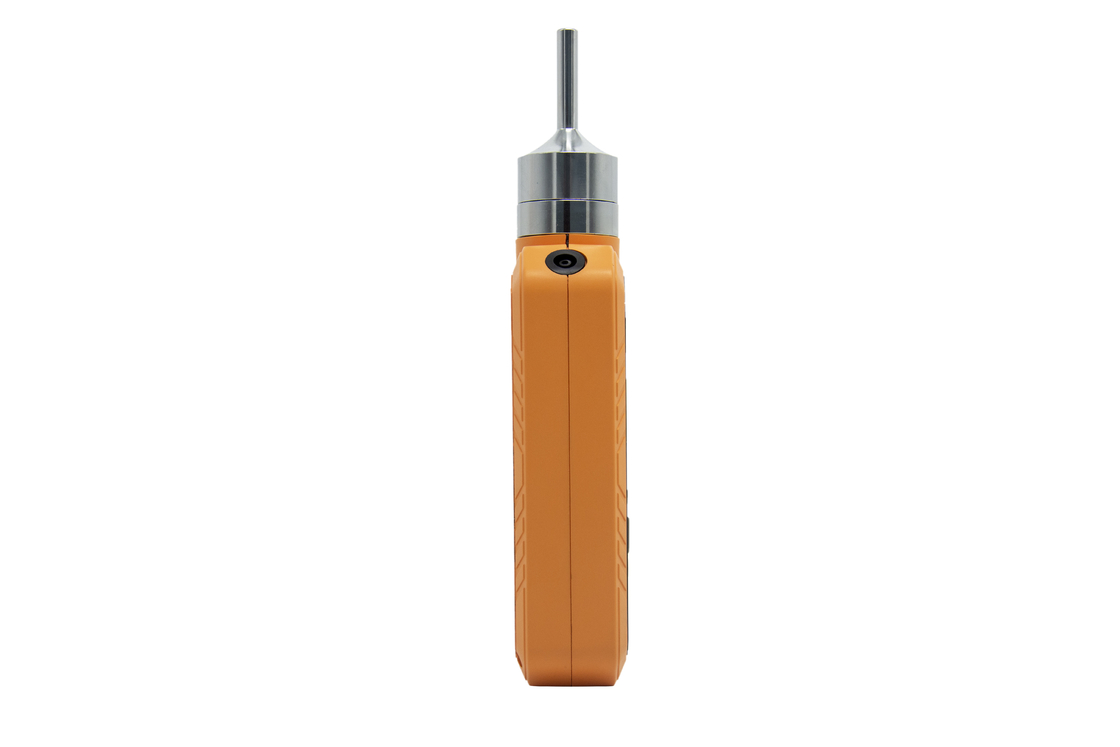

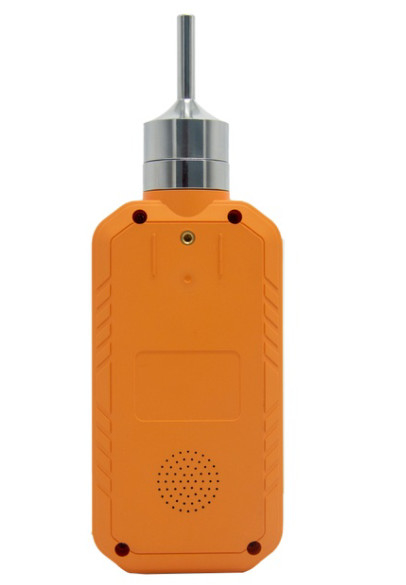

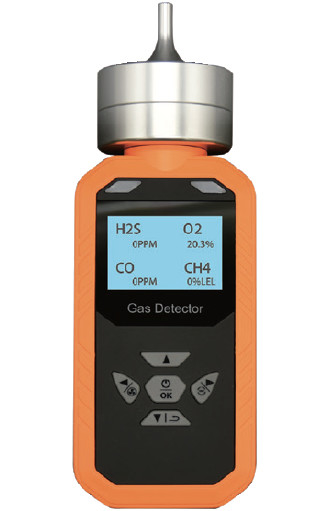

The portable voice type multi-4 gases detector (hereinafter referred to as the detector) is a safe device that can continuously detect
the concentration of combustible and toxic gases. With faster computing speed , the detector provides accurate and relible testing data. It adopts high definitionLCD display, user could quickly understand , operate and maintain the product by English interface and prompt. This detector is with built-in 2900mA , and high quality imported sensor which have excellent sensitivity and excellent repeatability; the gas detector is with quick response , strong anti-interference and reliable stability.
The pumped multi-4 gases detector is widely used in petroleum, chemical industry, environmental protection, metallurgy, refining, gas,
biochemistry pharmaceutical, agriculture, fire, archaeology and other toxic and explosion-proof industries and places that need safety monitoring.
Features:
Technical Parameters:
| Gas type | range | Low alarm point | High alarm point | Resolution | |
| EX | 0-100% LEL | 20% LEL | 50% LEL | 1% LEL | |
| H2S | 0-100ppm | 10ppm | 35ppm | 1ppm | |
| CO | 0-1000ppm | 50ppm | 150ppm | 1ppm | |
| O2 | 0-30% VOL | 19.5% VOL | 23.5% VOL | 0.1% VOL | |
| Please contact the company for other gas combinations | |||||
| Accuracy: | ≤±5% F.S. | ||||
| Warming up time: | ≤60 S | ||||
| Indication mode: | high definition LCD screen | ||||
| Working environment: | Temperature -20℃～+50℃; humidity <95%RH condensation | ||||
| Working voltage: | DC3.7V (lithium battery capacity 3000mAh)) | ||||
| Detecting method: | Pumped | ||||
| Pump flow rate: | 300-500ml/Min | ||||
| Alarming method: | sound , light , vibration | ||||
| Protection level: | Ip65 | ||||
| Appearance size: | 210x70x35mm(LxWxH) | ||||
| Weight: | 350g | ||||
| Standby time: | continuously 8 hours working after full charge | ||||
| Ex grade: | Ex ib IIC T4 | ||||
