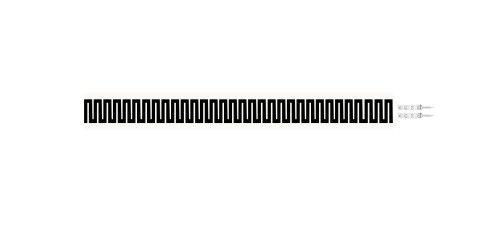

Flexible Thin Film Pressure Sensor Strip SF15-150 Series Piezoresistive Smart Cushion
Description
Flexible Thin Film Pressure Sensor Strip SF15-150 is a new type of sensor which is using flexible pressure sensing technology with independent intellectual property rights. It prints flexible nano-functional materials with strong adhesion, bending resistance and high sensitivity on flexible and light materials. So that it can achieve high-sensitivity detection of plantar pressure distribution.
Features
Ø Ultra-soft,thickness .
Ø Easy to integrate
Ø Fast response speed and high resolution
Ø Long lifespan, passed the press test of more than 1 million times
Ø The output signal is easy to detect
Ø Waterproof, moisture-proof, breathable
Performance Index
| Model |
SF15-150 |

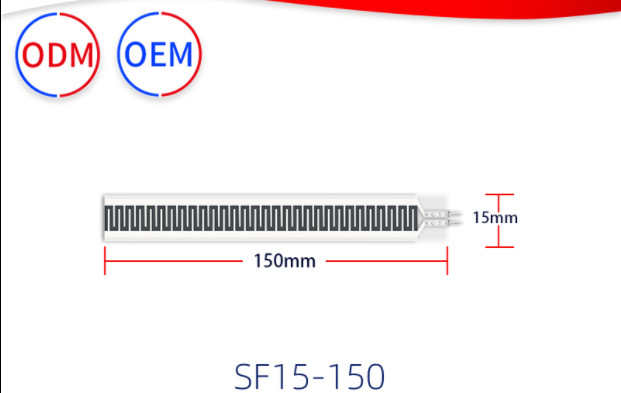

| Length |
150mm |
| Width |
15mm |
| Dimension |
See size specification description (customizable) |
| Speed |
Quick Response |
| Durability |
＞One million times |
| Initial Resistance |
＞10MΩ(Non-Loaded) |
| Response Time |
＜1ms |
| Resume Time |
＜15ms |
| Test Voltage |
|
| Operating Temperature |
-20℃ ～ 60℃ |
| EMI |
No produce |
| ESD |
Insensitivity |
Reference Circuit
Announcements
- When using the sensor, try to make the load received evenly and avoid direct contact with the sensor by sharp objects;
- Over-range use will reduce the performance of the sensor or even destroy the sensor;
- The sensor terminal is made of copper and tin-plated material, and the lead can be welded according to the needs. It should be noted that the soldering temperature should not be too high, it is recommended that it should not exceed 300°C, and the contact time should not exceed 1 second, so as to prevent the high temperature from melting and deforming the film substrate.
