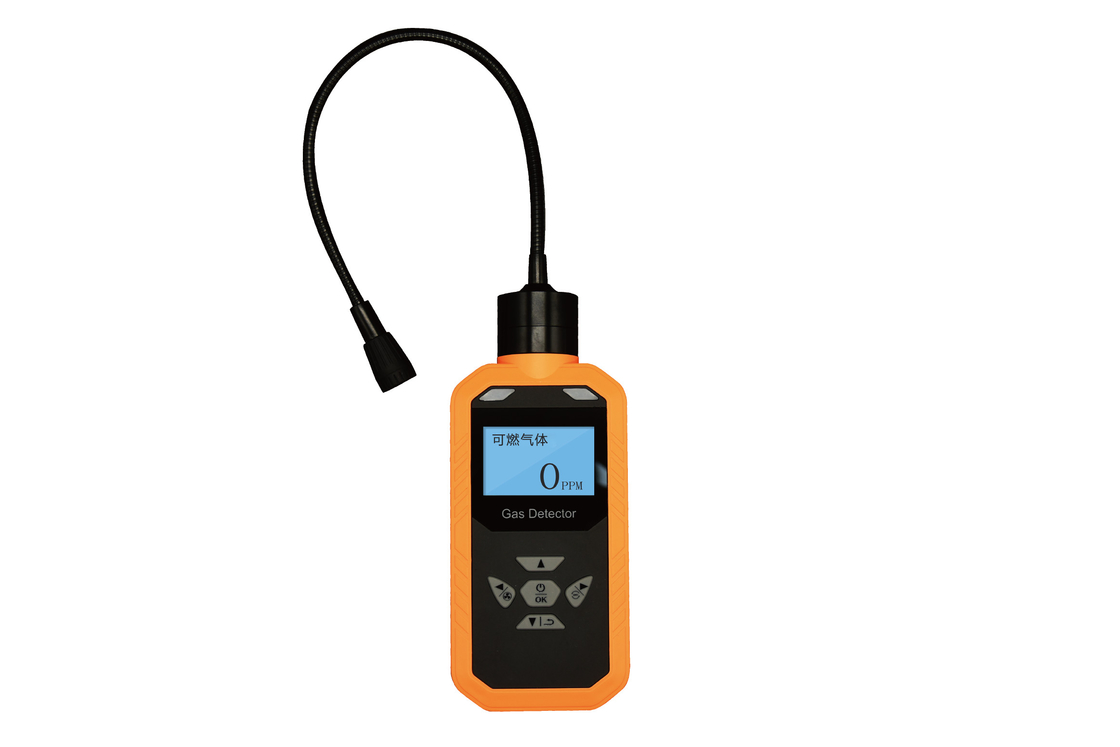

combustible gas leakage detector with goose neck for pipe leakage checking
Product Brief introduction:
The portable voice type combustible gas detector (hereinafter referred to as the leak detector) is a safe device that can continuously detect
the concentration of leaked gas. A fully intelligent gas detector designed with advanced integrated circuit technology, international standard intelligent technology level design technology and proprietary digital-analog hybrid communication technology. The leak detector uses the gooseneck natural diffusion method to detect gas,and the sensitive components use high-quality imported gas sensors, which have excellent sensitivity and excellent repeatability; use a dot matrix LCD display, support Chinese and English interface and Chinese and English voice prompts, users You can quickly understand this product, easy to use and maintain; the shell is madeof high-strength engineering plastics, which has good shock resistance, high strength, high-grade appearance and dustproof,waterproof and explosion-proof functions.
This detector is widely used in gas patrol inspection, automobile maintenance, gas station inspection, natural gas automobile,
household inspection and other applications. The detector can effectively predict the concentration of combustible gas and alarm to ensure that the life safety of the staff is not threatened, and the production equipment is not lost.
Features:
Technical Parameters:
| Gas type | Measurement range | Low alarm point | High alarm point | Resolution | |
| Combustible | 0-10000ppm | 1000ppm | 2000ppm | 1ppm | |
| Please contact the company for other gas combinations | |||||
| Display error: | ±10% + 50 ppm (As methane) | ||||
| Response time: | instantaneous | ||||
| Indication mode: | LCD liquid crystal display real-time data and system status, light, vibration and live voice recording (Chinese and English) prompts | ||||
| Working environment: | temperature -20ºC-50ºC; humidity <95%RH condensation | ||||
| Working voltage: | DC3.7V (lithium battery capacity 1800mAh) | ||||
| Charging time: | 4h-6h | ||||
| Standby time: | It can be used continuously for more than 10 hours under full power | ||||
| Sensor life: | 2 years | ||||
| Protection level: | Ip65 | ||||
| Appearance size: | 180mm x68mm x26mm | ||||
| Weight: | 180g | ||||
