Reusable Wireless Fire Hydrant Button Fire Gas Detection System

Wireless fire hydrant button for safety

Product Introduction:

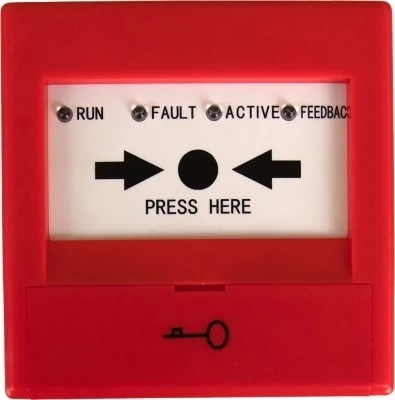

The TCXH5415W wireless fire hydrant button (hereinafter referred to as the fire hydrant button) is suitable for installation in public places. When the fire pump is manually confirmed to start, press the start button on the fire hydrant button, the fire hydrant button is always on, and it can be sent to the controller through wireless communication technology Start the signal and start the fire pump at the same time; after the fire pump has been started, the fire hydrant button answer light is always on, the fire hydrant button sends an answer signal to the controller through wireless communication technology, and the fire hydrant button enters the state of waiting for the controller to reset. The controller can display the coded information of the fire hydrant button and make a sound.

Parameters:

Main Characteristics:

1. Battery model: CR17450 (with wire)

2. Rated working voltage: 3.0V

3. Working current: monitoring current ≤15uA

   Starting current≤10mA

4. Indicator light: Start light: red, always on when starting

    Fault light: yellow, flashes twice every 48s when the battery is under power, and periodically flashes when the communication fails after        being connected to the network

    Working light: green, flashing periodically when the communication is normal after entering the network

    Answer light: green, always on after receiving the answer signal

5. Coding method: automatically assigned by the controller during networking

6. Communication method: 470MHz FSK coded two-way communication

7. Communication distance: ≤50m

8. Transmitting power: <20dBm

9. Start mode: manually press the button

10. Reset method: special key reset

11.Starting parts form: reusable type

12. Use environment:

     Type: Indoor Atmospheric pressure: 86kPa～106kPa

     Temperature: -10℃～+55℃ Relative humidity ≤95%, non-condensing

13. Dimensions: 96mm×95mm×50mm

14. Shell material and color: ABS, red

15. Weight: about 190g (including battery)

16. Executive standard: GB 16806-2006 "Fire Fighting Linkage Control System"

     XF 1151-2014 "General Requirements for Wireless Communication Functions of Fire Alarm Systems"

Features:

1 Using a push-type structure design, the fire hydrant button needs to be reset with a special tool after it is pressed;

2. Adopting 470MHz wireless communication technology, without pre-buried wiring, convenient and quick engineering installation;

3.With battery low voltage detection function, it can reflect the battery power situation in time;

4.The use of microprocessor to realize signal processing and digital signal to communicate with the controller, the work is stable and reliable, and has a good ability to suppress electromagnetic interference.

Fault and Abnormal information processing and Regular Check:

Others:

Please refer to the product manual for details
