50mA Wireless Fire Alarm Input Output Module In Fire Alarm System

Wireless Input Module for safe

Product Introduction:

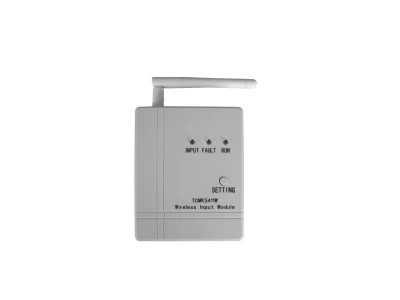

TCMK5411W wireless input module (hereinafter referred to as the module) is suitable for installation in public places, factories and other environments. When there is a fire alarm, after the module receives the input signal specified by the manufacturer, it will send an alarm signal to the control panel through wireless communication technology, and the red light will always be on.

Features:

1. Adopting 470MHz wireless communication technology, no need to pre-buried wiring, easy and quick engineering installation;

2. With battery low-voltage detection function, it can reflect the battery power status in time;

3. Use microprocessor to realize signal processing, and use digital signal to communicate with controller, work stably and reliably, and have good suppression ability against electromagnetic interference.

Technical specifications:

1. Battery type: CR17450(wired)

2. Rated working voltage:3.0V

3. Working Current: Standby Current≤13uA Alarm Current≤20mA

4. Indicators:Input light: red, always on when alarming

   Fault Indicator: yellow, flashes twice every 48s when the battery is under power, and periodically flashes when the communication fails after           being connected to the network

   Working Indicator: Green, flashing periodically when the communication is normal after entering the network

5. Coding Method: The controller is automatically assigned during networking

6. Communication method: 470MHz FSK coded two-way communication

7. Communication distance:≤50m

8. Transmitted power:<20dBm

9. Reset method: by control panel

10.Application environment:

    Type:indoor Atmosphere pressure:86kPa～106kPa

    Temperature:-10℃～+55℃ Relative humidity≤95%,non-condensing

11.Outline dimension:101mm×137mm×43mm

12.Material and color:ABS, off-white

13. Weight: about 160g (including battery)

14.Executive standard: GB 16806-2006 "Fire Linkage Control System"

     XF 1151-2014"General Requirements for Wireless Communication Function of Fire Alarm System"

Fault and Abnormal information processing and Regular Check

Others

Company Profile

Henan Weiguo Intelligent Technology Co., LTD., founded in 2015, is an important subsidiary of Hanwei Electronics Group Corporation (Stock no.:300007) in the field of intelligent healthy, safe home and IoT business. Henan Weiguo Intelligent Technology Co., LTD., relying on the core sensor technology, focuses on gas and smoke alarm, air quality monitor, alcohol tester and firefighting products. Based on introduction of featured technology from both Hanwei Electronics Group Corporation and abroad, Henan Weiguo intelligent Technology Co., LTD., has developed into an innovative company with the collection of design, R&D development, production, sales and service. We will always be committed to becoming the leader in intelligent hardware, providing safe, healthy, environmentally friendly and intelligent working and living environment for families and users all over the world.

FAQ
Q1: Are you manufacturer?
A: (yes)
Q2: What is the lead time?
A: usually
Fire control: one week working day
bulk quality: three weeks working days
Emergency lights: two weeks working days
bulk quality: four weeks
Q3: How do you ship the goods and how long does it take arrive?
A: We usually ship by DHL, UPS, FedEx or by Air. 3-5 days after payment received.
Q4: Can I have a sample order?
A:Yes,we welcome sample order to test and check quality.
Q5: Do you offer OEM service?
A: Yes, we can design the device according to your request.
