BSI UL ISOD 2.000mg/L Personal Breath Alcohol Tester 114×66×26mm

Personal fuel cell Breathalyzer Breath Alcohol Tester with electrochemical sensor for commercial usage

Product Descriptions:

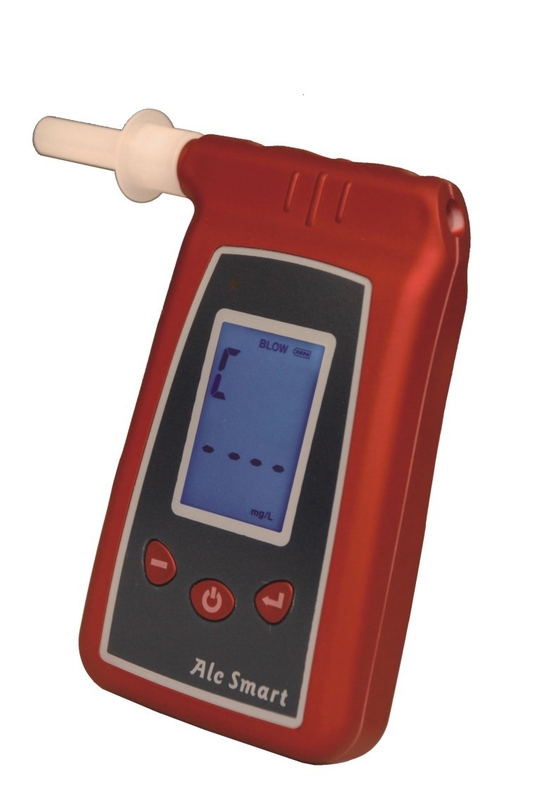

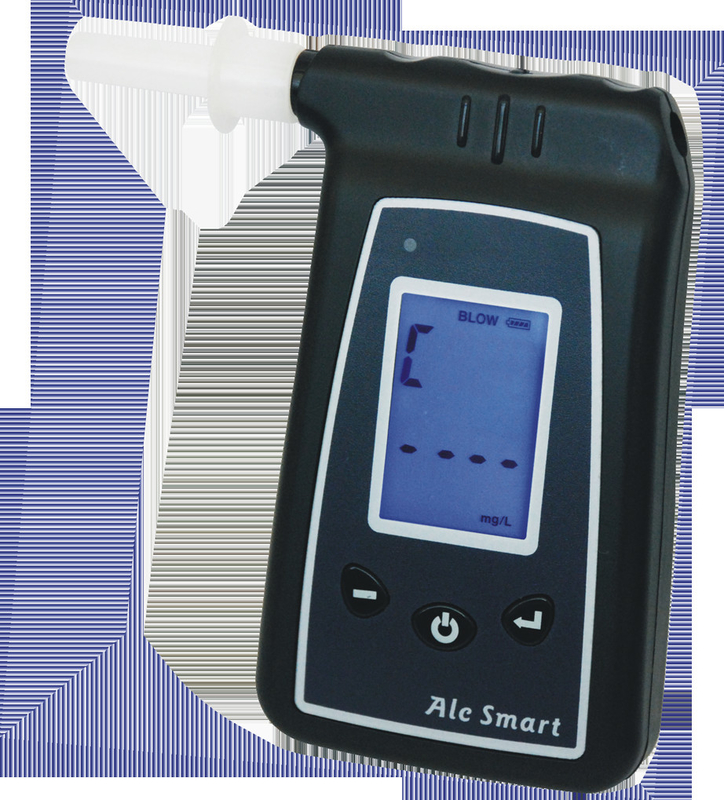

AT8020 is an advanced portable breath alcohol tester, its core component adopts new high-tech electrochemical sensor which can get more accurate alcohol concentration value, with strong anti-interference ability. The admirable human-device interface makes operation more concise and convenient, the color LCD makes interface more clear and beautiful. Moreover, the one-off anti-return mouthpiece design ensures the health and safety of users.

Main Functions and Features:

• Advanced 16 bit low power consumption MCU
• Electrochemical sensor, good reliability and accuracy
• LCD indication
• Simple button operation
• Low pressure and testing rejection function
• Measurement unit and alarming level adjustable function
• Testing record review function
• Passive testing available
• Short warm-up time, fast response and resume
• Adopt anti-return mouthpiece for health and safety
• Power saved design

Technical Specifications:

​

• Sensor type: Electrochemical (Fuel cell) sensor
• Detection Range: 0.000～2.000mg/l (0.40%B.A.C, 4.0‰B.A.C, 4.0g/l)
• Alarm level: 0.250 mg/L (could be modified)
• Resolution: 0.01mg/L
• Display: 1.8 inch LCD screen
• Work conditions: temperature: 0℃～40℃
• humidity: ＜95%RH (No Dews)
• Storage conditions: -25℃～70℃
• Battery: 3×AAA 1.5V batteries
• Dimension l×b×h: 114×66×26mm
• Weight:about 100g(excluding battery)
• Sensor life: 2 years

Table 1 Allowable error

Table 1 the allowable error in the process of detecting
