SIL2 TUV Fixed Gas Detector

  • SIL2 TUV Fixed Gas Detector
  • SIL2 TUV Fixed Gas Detector
  • SIL2 TUV Fixed Gas Detector
Get Price Contact Now

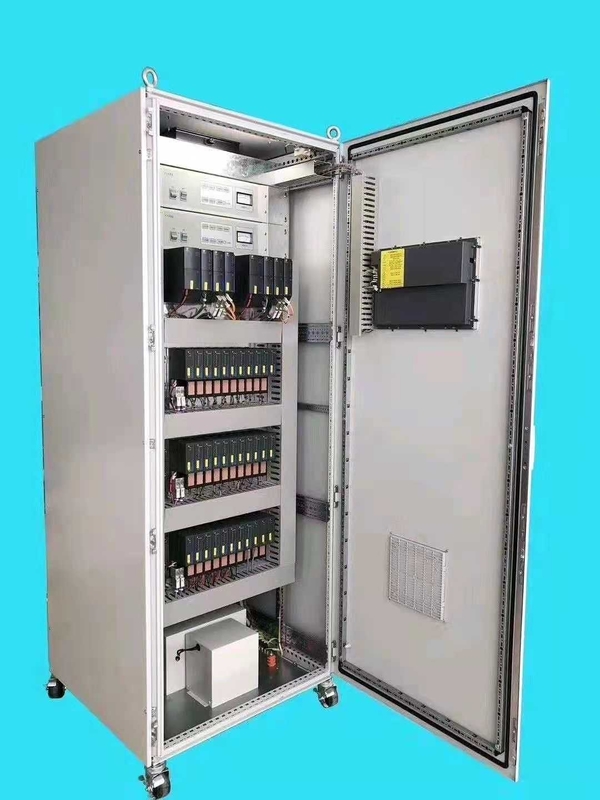

TUV certified GDS system of Fixed Gas Detectors with SIL II safety level for industrial application

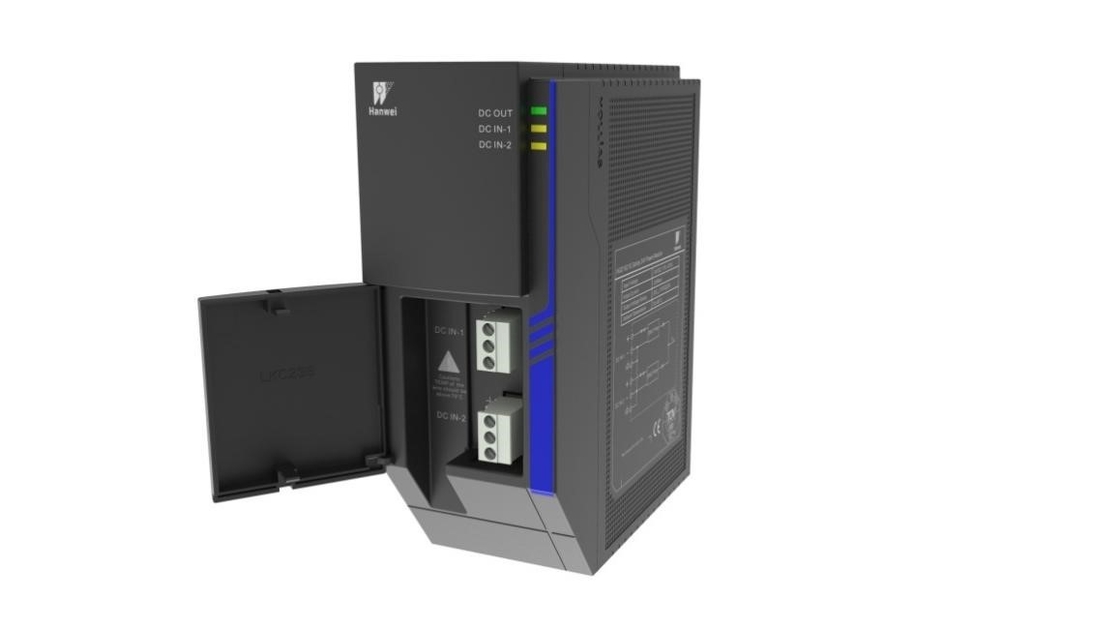

Product Brief Introduction:
HGDS1000 safety control system meets the requirements of system capability of safety integrity level SIL2 with large capacity, high availability, superior performance, fast response characteristics, can be widely used in petrochemical, fine chemical industry, oil and gas pipeline transmission, hospital safety equipment and enterprise ESD system. Control system are composed of controller and the IO module to complete the functions of data acquisition, logic operation, action output, human-computer interaction and so on, so as to realize the security protection function.
Features:

High Availability

(1) Adopt dual rack redundant structure, including power redundancy, controller redundancy and network redundancy.
(2) In redundancy mode, the system can still run when there is a single fault.
Fast Response
(1) The typical time of redundancy switching is 90 ms.
(2) The minimum time of task scheduling is less than100 us.
(3) The fastest control cycle of loop is 50 ms.
Large Capacity
(1) Single-DP network, 124 IO slaves can be added.
(2) The IO capacity supported by the system is more than 10,000 points.
Easy Maintenance
(1) More than 10,000 logs are recorded by logging tools, including abnormal operations, faults and other information.
(2) Module information and diagnostic information of each module can be obtained respectively through Module Information Instruction Library and System State Instruction Library.
(3) Each module is hot-swappable.
(4) Update the system by SD card or HGDS-AutoThink software.



Technical parameters:



Reliability specifications
AC/DC power supply

Voltage: rated AC100V ~ AC240V (root mean square value), tolerance -15% ~ +10% (85VAC ~ 264VAC)
Frequency: rated 50Hz or 60Hz, tolerance-6%~+4%(47Hz~63Hz)
Power supply on Site 24V DC (-15% ~ +20%)
System Power Supply 24V DC (-15% ~ +20%)
Working Environment Temperature 0℃～60℃, EN60068-2-14, Test Nb
Storage Environment Temperature -40 ℃ ~ +70 ℃, EN60068-2-14, Test Na
Humidity 5%～95%, no condensation, EN60068-2-30, Test Db
Working Altitude ≤2000m
Storage Altitude ≤3000m
Electrical Safety Meet the requirement of IEC 61131-2, IEC 61010-1, IEC 61010-2-201. Enclosed, SELV/PELV circuits.
Isolation withstand voltage (field to system) 500V ACt1mistn,leakage current is not more than 5mA
Over voltage level II
IP protection grade IEC60529 IP20(the foreign matter more than 12mm can not enter,not waterproof)
Pollution Level 2
Vibration Sinusoidal vibration (durability) 0.5G @ 10 to 150Hz, 3 axis, 20 times per axis, IEC 60068-2-6
Sinusoidal vibration (operation) 3.5mm @ 5 to 8.4Hz, 3 axis, 10 times per axis, IEC 60068-2-6
1G @ 8.4 to 150Hz, 3 axis, 10 times per axis, IEC 60068-2-6
shock Half sinusoidal, 15G peak for 11ms, 3 axis, 18 times in total, IEC 60068-2-27
collision (0.5±0.04)J, 3 times per spot
EMC Radiation emission IEC 61131-2, EN 61000-6-4, EN 50121-4
Conducted emission IEC 61131-2, EN 61000-6-4, EN 50121-4
Electrostatic discharge IEC 61000-4-2 Contact discharge ±6 kV, Air discharge ±8 kV.
Radio frequency electromagnetic field radiation immunity

IEC61000-4-3
80MHz~1000MHz, 20V/m
1.4GHz~2.0GHz, 10V/m
2.0GHz~6GHz, 5V/m
80 % AM (1 kHz)
Power frequency magnetic field immunity IEC 61000-4-8 100 A/m (50 Hz)
Electrical fast transient burst

AC power port:
2kV (5/50 ns, 5 kHz and 100 kHz)
4kV (5/50 ns, 5 kHz and 100 kHz)

Signal port:
2kV (5/50 ns, 5 kHz and 100 kHz)
2kV (5/50 ns, 5 kHz and 100 kHz), DIO with shielded lines
surge

AC power port:
2kV CM, 1kV DM
4kV CM, 2kV DM

Signal port:
2kV CM
RF conducted immunity

IEC61000-4-6
20V, 150 kHz to 80 MHz
80%AM(1kHz)
0Hz~150kHz Common mode conduction immunity

AC power port:
1 V to 10 V increasing with 20 dB/decade (1,5 kHz to 15 kHz).
10 V (15 kHz to 150 kHz)

Signal port:
1 V to 10 V increasing with 20 dB/decade (1,5 kHz to 15 kHz);
10 V (15 kHz to 150 kHz)
10 V (continuous: DC, 16 2/3 Hz, 50 Hz, 150 Hz)
100 V (short duration 1 s: DC, 16 2/3 Hz, 50 Hz)
Voltage dips, short interruptions

0 % during 0.5 cycle
0 % during 1 cycle
40 % during 10 cycles
70 % during 25 cycles
0 % during 250 cycles




TUV certificate:

SIL2 TUV Fixed Gas Detector 0



SIL2 TUV Fixed Gas Detector 1



SIL2 TUV Fixed Gas Detector 2

SIL2 TUV Fixed Gas Detector 3
