multiple 4 gases portable gas detector for industrial HSE application
Description:

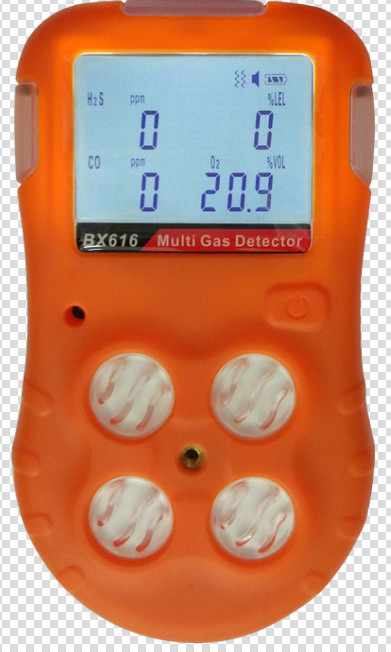

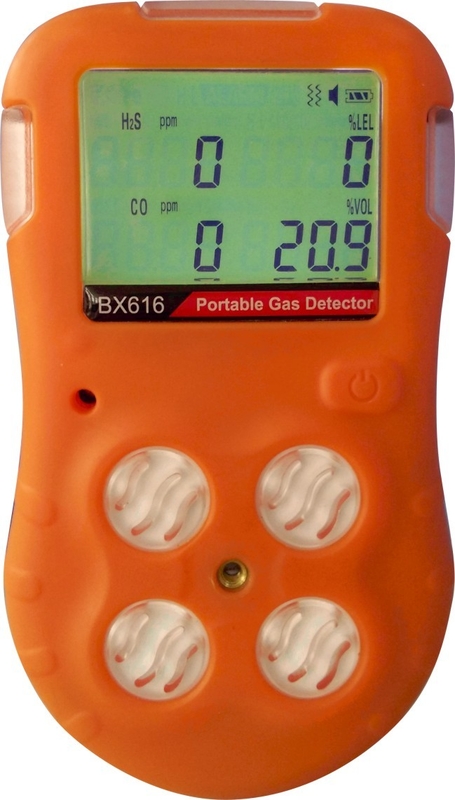

BX616 is a multiple gas detector which can detect the combustible gases, O2, CO and H2S gases in the air. Its functional and watertight design (IP 66) incorporates a Bump proof, rubberized enclosure to meet the toughest requirement of harsh environment like underground tunnels, mines etc.
The detector is widely used in petroleum , chemical , environmental protection , metallurgy , etc. which is necessary to safely monitor toxic and harmful , and explosion industries . The detector can effectively predict of dangerous gas concentration and alarm , ensure the safety of the workers is not threatened , and the production equipment is not damaged.
Features:
Technical parameters:
| Detection method | Diffuse naturally |
| Detecting gas | See attached table on the last page |
| I.S Parameters | Um=7.48V Ui=4.2V Ii= 1.08 A |
| Battery | DC3.7V 1800mAh Lithium battery (Model Number: FRT-FB101S02, Um=7.48V) |
| Response time | T90＜30s |
| Indication error | ±5% FS |
| Working condition |
Temperature: -20℃～50℃ Humidity: ＜95%RH (no condensation) |
| Charging time | ≤ 6 hours |
| Battery working time | ≥ 8 hours (no alarm status) |
| IP Rating | IP66 |
| Ex Markings |
Ex ia IIC T4 Ga Ex ib db IIC T4 Gb |
| Certificate |
TÜV 17 ATEX 8115 X IECEx TUR 17.0048X |
| Dimension | L*W*H 120mm×68mm×30mm |
| Weight | About 220g |
Product Details:
