Smart Wireless Sounder for Public Security
Product Introduction:

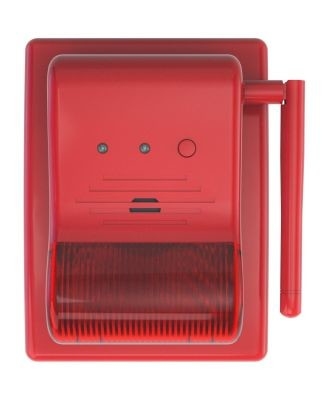

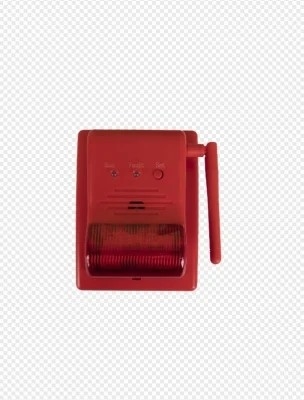

The TCSG5416W wireless sounder (hereinafter referred to as sounder) is suitable for installation in public places, factories and other environments, and is used in conjunction with the JB-TB-TC5126W wireless sounder control panel (hereinafter referred to as the panel). When the panel receives the sounder command from other fire alarm equipment, the panel activates the siren through wireless signals, and the siren emits sound and light signals to achieve the purpose of sounder.
Features:
2.1. Adopting 470MHz wireless communication technology, no need to pre-buried wiring, easy and quick engineering installation;
2.2. With battery undervoltage detection function, it can remind users to replace the battery in time;
2.3. Use microprocessor to realize signal processing, and use digital signal to communicate with control panel, work stably and reliably, and have good suppression ability against electromagnetic interference.
Technical specifications:
1. Battery model: CR17450-2-080-02
2. Rated working voltage: DC3V
3. Working current: monitoring current ≤45uA alarm current ≤240mA
4. Indicator light:
Fault light: yellow, flashing periodically when communication fails
Working light: green, flashing periodically when communication is normal
5. Sound pressure level: 75dB ~ 115dB (A weighting)
6. Modulation cycle: 3.0S～4.0S
7. Flash frequency: 1Hz～1.5Hz
8. Coding method: automatically assigned by the control panel during networking
9. Communication method: 470MHz FSK coded two-way communication
10. Communication distance: ≤50m
11. Transmitting power: <20dBm
12. Reset method: control panel reset
13. Use environment:
Type: Indoor atmospheric pressure: 86kPa～106kPa
Temperature: 0℃～+55℃ Relative humidity ≤95%, non-condensing
14. Dimensions: 95mm×127mm×56mm
15. Shell material and color: ABS, red
16. Executive standard:
GB 26851-2011 "Fire Sound and/or Light Alarm"
XF 1151-2014 "General Requirements for Wireless Communication Functions of Fire Alarm system
Fault and Abnormal information processing and Regular Check
| Fault | Reason | Solution |
|
According to the sensitivity level of the control panel, the yellow fault light will flash once periodically (75 seconds at level 1 Level 2 40 minutes Level 3 2 and a half hours Level 4 5 hours) |
Too far away from the control panel or interference sources nearby cause communication failure | Move the device near the control panel, reconnect to the network and remove the source of interference |
| The faulty yellow light flashes 2 times periodically (every 48 seconds is a cycle) | Report a low battery fault | Replacement battery |
| After the device alarms, the control panel has no status prompt | The device is not connected to the network | Restart the network operation |
| Device networking is unsuccessful | Too far away from the control panel or interference sources nearby | Move the device near the control panel, reconnect to the network and remove the source of interference |
