Vehicular RS485 Ethernet 50km/H Gas Leakage Detector With GPS

Vehicular laser methane CH4 gas leakage detector with TDLAS technology for gas piping leakage detection

Product Brief Introduction:

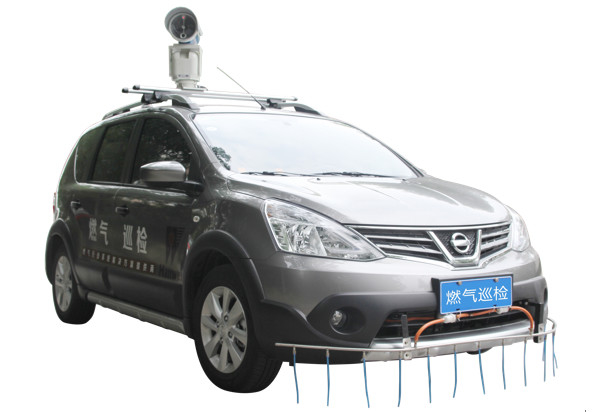

Vehicular Laser Methane Detector VRMLD800 is an advanced gas detection instrument which is developed independently by our company. , controller inside the vehicle and remote monitoring center. Adopting the theory of Laser spectrum analysing, the combination of the front pump and the roof top detector could rapidly detect the gas leakage of pipelines along the road. Photos and concentration information will be screened by the controller inside the vehicle. With the help of GPS technology,leakage points could be located. Inspection information could be uploaded to remote monitoring center as first hand information for operators on duty or as proof for further arrangement.

Features:

The product is mainly used to detect leakage of gas pipeline under the road or green belt , etc.

• High sensitivity: adopts multiple reflection light path, sensitivity smaller than 1ppm.m.
• Good selectivity, only react to methane, effectively avoid interference of vehicle exhaust.
• Fast res;l se: response time lower than 0.1s, zero delay.
• High inspection speed, max 50km/h
• Visualized date disply: real time display of concentration curves and inspection route on the
• tablet.Route can be integrated with GIS.

Technical parameters:

• Gas detected: methane
• Sensitivity:1ppm.m
• Detection range:1~200ppm.m
• Response time:T90<0.1S
• Working temperature:-30~50
• Working humidity:0~99% RH non condensing
• Working voltage:12Vdc, powered by vehicle battery

Product Details:

Company profile:


Henan Weiguo Intelligent Technology Co., LTD., founded in 2015, is an important subsidiary of Hanwei Electronics Group Corporation (Stock no.:300007) in the field of intelligent healthy, safe home and IoT business. Henan Weiguo Intelligent Technology Co., LTD., relying on the core sensor technology, focuses on gas and smoke alarm, air quality monitor, alcohol tester and firefighting products. Based on introduction of featured technology from both Hanwei Electronics Group Corporation and abroad, Henan Weiguo intelligent Technology Co., LTD., has developed into an innovative company with the collection of design, R&D development, production, sales and service. We will always be committed to becoming the leader in intelligent hardware, providing safe, healthy, environmentally friendly and intelligent working and living environment for families and users all over the world.

(Hanwei Electronics Group Corporation (Stock no.:300007), founded in 1998, is an influential manufacturer of gas sensors and instruments in China and a leading supplier of sensor-based IoT solutions in China. Hanwei Electronics Group Corporation is committed to providing perfect solutions for smart city, safe production, environmental protection and people's health.)


​​​
