Customized 0.3mm Thin Film Pressure Sensors ESD Insensitivity

Customized 0.3mm Thin Film Pressure Sensors ESD Insensitivity

  • High Light

    0.3mm Thin Film Pressure Sensors

    ,

    Customized Thin Film Pressure Sensors

    ,

    Thin Pressure Sensors ESD Insensitivity

  • OEM/ODM
    Supported
  • E-Mail
    Sales@wgsensor.com
  • WhatsApp
    +8613333637163
  • Place of Origin
    China
  • Brand Name
    WG Sensor™
  • Certification
    CE RoHS
  • Model Number
    DF9-16
  • Minimum Order Quantity
    10pcs
  • Price
    1-99pcs/3USD ~ 100-1000pcs/2.5USD (Negotiable)
  • Packaging Details
    Carton
  • Delivery Time
    5-10 work days
  • Payment Terms
    T/T, L/C, Western Union
  • Supply Ability
    10000000 PCS PER YEAR

Customized 0.3mm Thin Film Pressure Sensors ESD Insensitivity

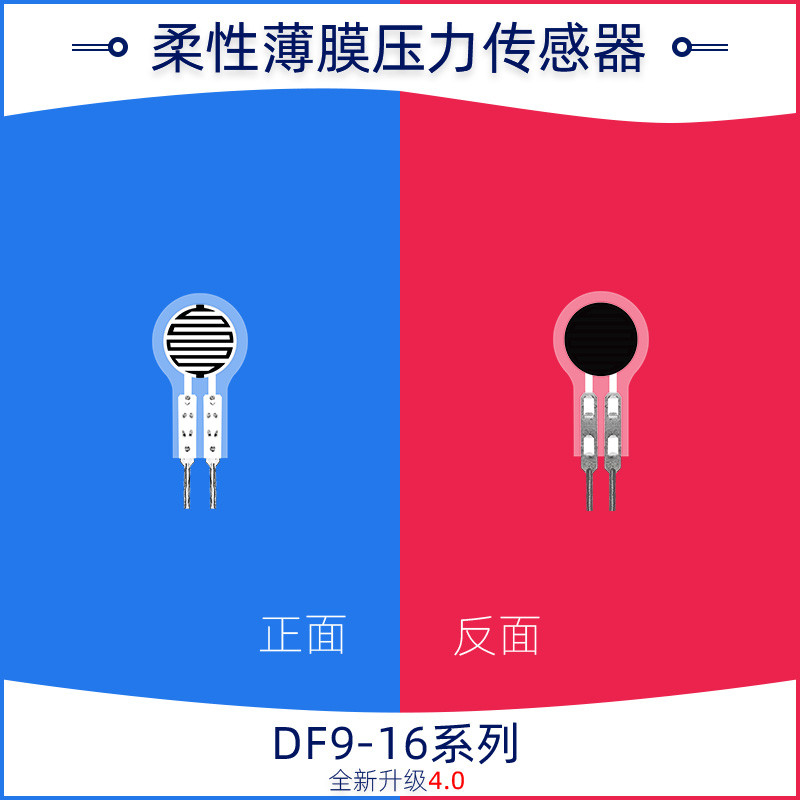

Humanized design Flexible Thin Film Pressure Sensor DF9-16 Series for better life



Description

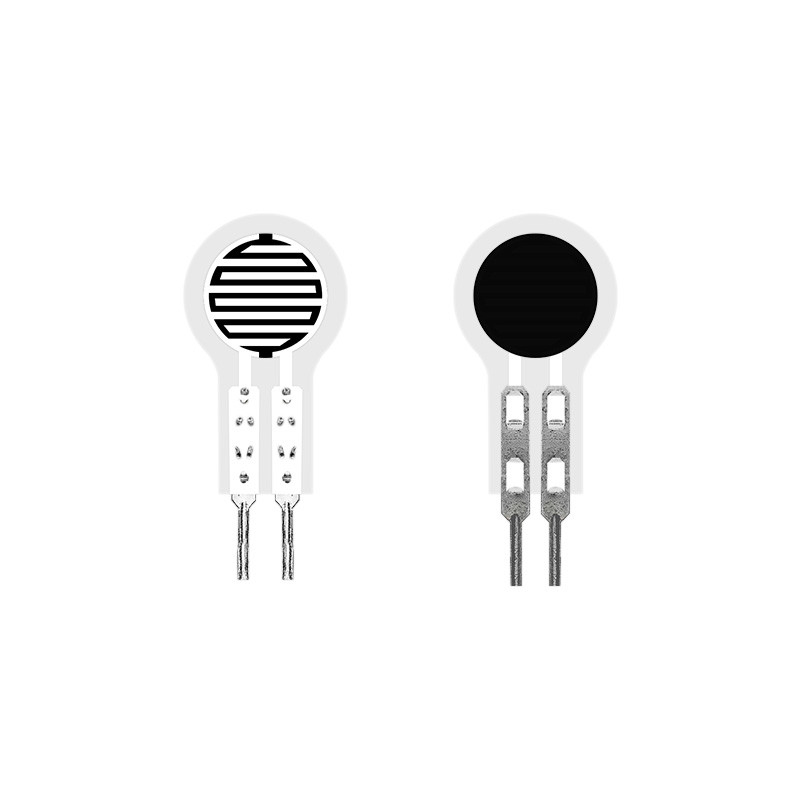

DF9-16 series flexible thin film pressure sensor is a new type of sensor with independent intellectual property rights of flexible pressure sensor technology. It is printed on flexible thin material with strong adhesion, bending resistance and high sensitivity of flexible Nano functional materials, so as to achieve high sensitivity of pressure detection.
The thin film pressure sensor is a resistive sensor. The output resistance decreases as the pressure on the sensor surface increases. The pressure can be measured through a specific pressure-resistance relationship. It is suitable for pressure measurement scenarios on flexible surfaces, and can be widely used in smart home, consumer electronics, automotive electronics, medical equipment, industrial control, smart robots and other fields.
The DF9-16 series currently has 500g, 2kg, 5kg, 10kg, 20kg and other different range models.



Features


Ø Ultra-thin,thickness less than 0.3mm

Ø Quick response

Ø Long life,passed the pressing test of more than 1 million times

Ø The detection circuit is simple, easy to integrate and apply

Ø Sensor profile can be customized

Ø The sensor range parameters can be customized

Ø Passed RoHS Authentication


Product parameters




Logo Size(mm)
Length 23.2
Width 10
Sensitive Zone φ7.8
Pin pitch 2.54
Tolerance 0.2


Performance Index


Model DF9-16@500g DF9-16@2kg DF9-16@5kg DF9-16@10kg DF9-16@20kg
Range 0~500g 0~2kg 0~5kg 0~10kg 0~20kg
Thickness ≤0.3mm
Dimension See specification and size description
Response point1 ≤20g ≤300g ≤700g
Repeatability ±5%(50%Loaded)
Consistency2 ±10%(Batch of the same model)
Hysteresis +15% (RF+ - RF-)/RF+
Durability >One million times
Initial Resistance >10MΩ(Non-Loaded)
Response Time < 1ms
Resume Time < 15ms
Test Voltage Typical Value DC 3.3V
Operating Temperature -20℃ - 60℃
EMI No produce
ESD Insensitivity


Data reference sheet




Model:

DF9-16@500g

Model:

DF9-16@2kg

Model:

DF9-16@5kg

Model:

DF9-16@10kg

Model:

DF9-16@20kg

pressure/kg resistance/kΩ pressure/kg resistance/kΩ pressure/kg resistance/kΩ pressure/kg resistance/kΩ pressure/kg resistance/kΩ
0.05 34.87 0.2 11.20 0.5 8.66 1 4.38 2 4.85
0.1 14.87 0.4 6.07 1 4.68 2 3.05 4 3.67
0.2 7.39 0.6 4.31 1.5 3.60 3 2.50 6 3.06
0.25 6.14 0.8 3.43 2 3.11 4 2.20 8 2.73
0.3 5.19 1 2.97 2.5 2.78 5 2.00 10 2.55
0.4 4.37 1.2 2.67 3 2.55 6 1.85 12 2.43
0.5 3.77 1.4 2.48 3.5 2.36 7 1.76 14 2.36
  1.6 2.30 4 2.17 8 1.70 16 2.31
  1.8 2.19 4.5 1.98 9 1.63 18 2.27
  2 2.08 5 1.83 10 1.60 20 2.23


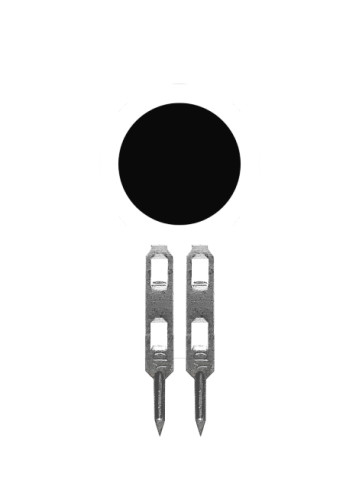

Customized 0.3mm Thin Film Pressure Sensors ESD Insensitivity 0

Reference Circuit

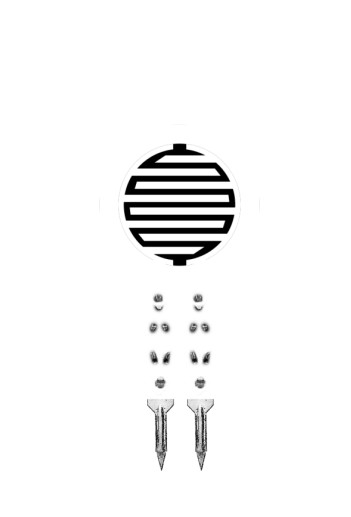

Customized 0.3mm Thin Film Pressure Sensors ESD Insensitivity 1
