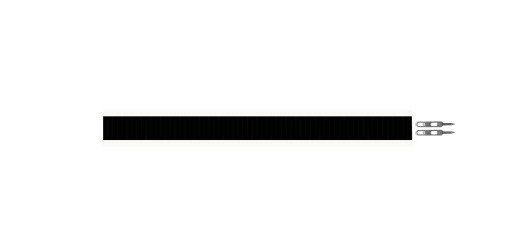

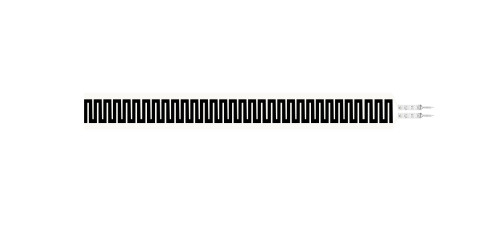

Airradio Custom 600x15mm Thin Pressure Sensor For Smart Shelf

Airradio Custom 600x15mm Thin Pressure Sensor For Smart Shelf

  • High Light

    600x15mm Thin Pressure Sensor

    ,

    Airradio thin pressure sensor

    ,

    Smart Shelf Custom pressure sensor

  • Material
    Ploymer
  • Applicable Scene
    Sleep Detection/Smart Shelf/Smart Cushion
  • Output Model Type
    Analog Sensor
  • Testing Voltage
    DC3.3V
  • Working Principle
    Biosensors
  • Product Name
    Flexible Film Pressure Sensor SF15-600
  • Working Voltage
    3.3V
  • Other
    Customizable
  • OEM/ODM
    Supported
  • E-Mail
    Sales@wgsensor.com
  • WhatsApp
    +8613333637163
  • Place of Origin
    China
  • Brand Name
    WG Sensor™
  • Certification
    CE RoHS
  • Model Number

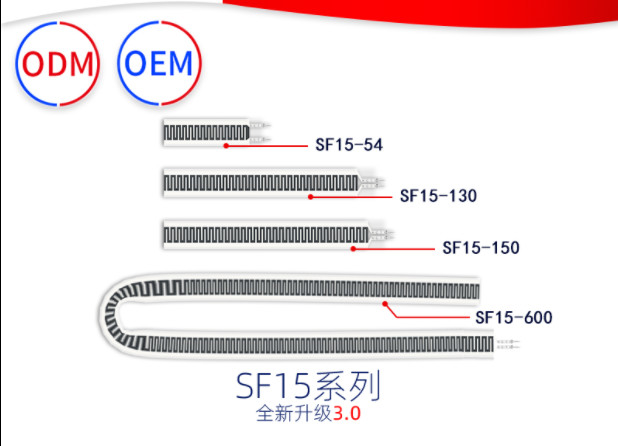

    Strip SF15-600 Series
  • Minimum Order Quantity
    49pcs
  • Price
    1-49pcs/12USD ~ 50-200pcs/10USD (Negotiable)
  • Packaging Details
    Gift Box,single carton
  • Delivery Time
    5-10 work days
  • Payment Terms
    T/T, L/C, Western Union, MoneyGram
  • Supply Ability
    100000 pcs /per year

Airradio Custom 600x15mm Thin Pressure Sensor For Smart Shelf

Special Experience Flexible Thin Film Pressure Sensor Piezoresistive Sleep Detection



Description

Flexible Thin Film Pressure Sensor Strip SF15-600 is a new type of sensor which is using flexible pressure sensing technology with independent intellectual property rights. It prints flexible nano-functional materials with strong adhesion, bending resistance and high sensitivity on flexible and light materials. So that it can achieve high-sensitivity detection of plantar pressure distribution.





 Features



Ø Ultra-soft,thickness .

Ø Easy to integrate

Ø Fast response speed and high resolution

Ø Long lifespan, passed the press test of more than 1 million times

Ø The output signal is easy to detect

Ø Waterproof, moisture-proof, breathable


Performance Index

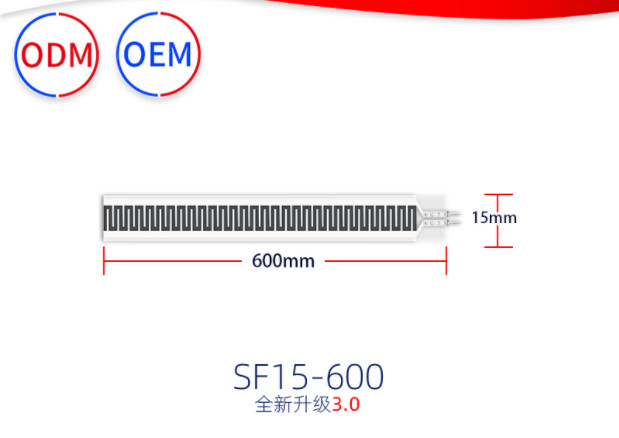

Model SF15-600
Length 600mm
Width 15mm
Dimension See size specification description (customizable)
Speed Quick Response
Durability >One million times
Initial Resistance >10MΩ(Non-Loaded)
Response Time <1ms
Resume Time <15ms
Test Voltage
Operating Temperature -20℃ ~ 60℃
EMI No produce
ESD Insensitivity




Reference Circuit

Airradio Custom 600x15mm Thin Pressure Sensor For Smart Shelf 0Airradio Custom 600x15mm Thin Pressure Sensor For Smart Shelf 1

Airradio Custom 600x15mm Thin Pressure Sensor For Smart Shelf 2

Announcements

  • When using the sensor, try to make the load received evenly and avoid direct contact with the sensor by sharp objects;
  • Over-range use will reduce the performance of the sensor or even destroy the sensor;
  • The sensor terminal is made of copper and tin-plated material, and the lead can be welded according to the needs. It should be noted that the soldering temperature should not be too high, it is recommended that it should not exceed 300°C, and the contact time should not exceed 1 second, so as to prevent the high temperature from melting and deforming the film substrate.
