Coin operated Fuel Cell Breathalyzer vender for club , bar , restaurant
Poruduct Descriptions:

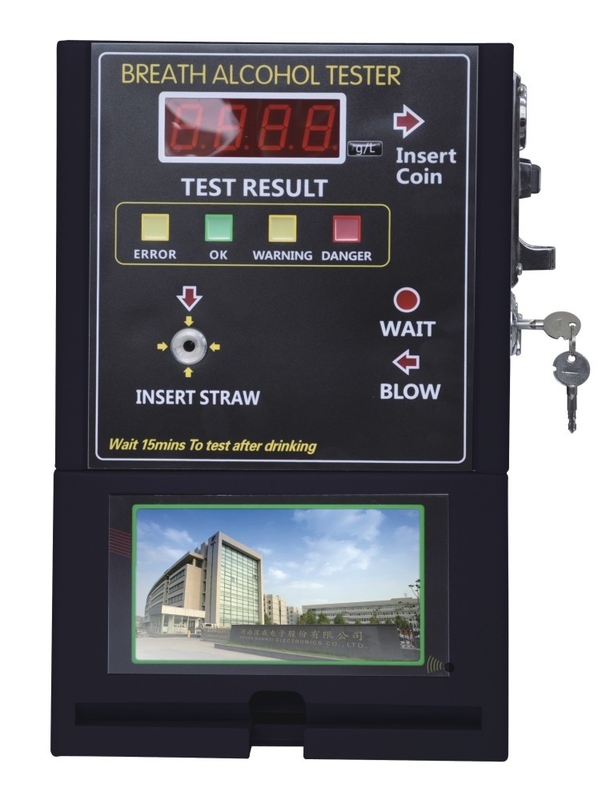

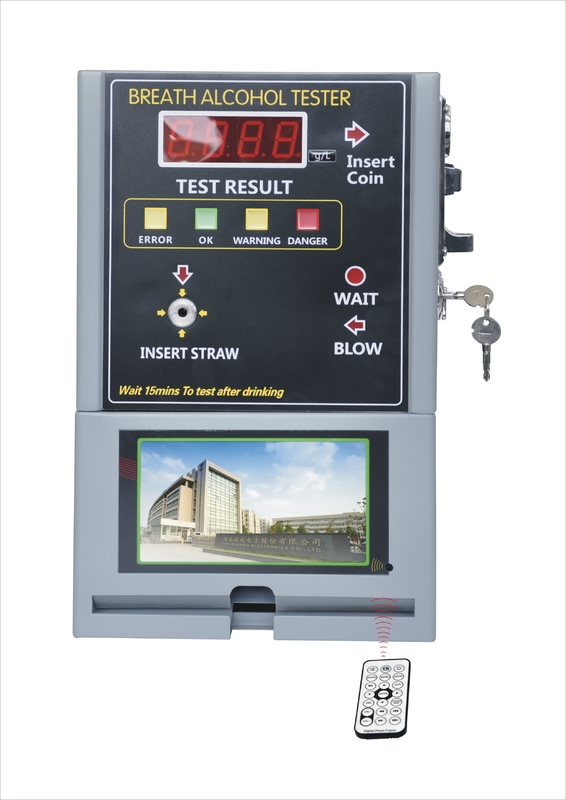

AT319V, coin-operated Breath Alcohol Tester, is designed to measure alcohol concentration in the human body. With advanced fuel cell alcohol sensor, this device has excellent sensitivity and reproducibility. Reasonable and easy testing process, complete function make it versatile in many occasions. When the alcohol content exceeds the preset alarming level, it will send out an alarm warning and show the result directly and clearly on the digital LCD display.
Technical parameters:
| Model | AT319V |
| Sensor type | Fuel cell sensor |
| Test Range |
0.000～4.000g/L(0.000～2.000mg/L, 0～440mg/100mL,0.000～0.400%BAC, 0.000～0.400g/100ml,0.000～4.000‰BAC) |
| Resolution | 0.002g/L |
| Preheating time | ≤1min |
| Warning level | 0.180g/L |
| Danger level | 0.500g/L |
| Environment | Temperature:0℃～50℃；Relative humidity:≤95% No Dews |
| Storage temperature | -20℃～60℃ |
| Display | Four digits LCD display；Test process and result are showed by the red, green, and yellow indicator light |
| Warning method | Audio and light |
| Working Voltage |
Input:AC100V～AC240V,50/60HZ； Output:DC12V/1.5A |
| Indication manne | g/L ,mg/L,mg/100mL,%BAC(g/100mL),‰BAC optional |
| Accuracy | ±0.005% at 0.05%BAC |
| Coin for single time | 0 —— 15 (For 0, the tester can be tested without coin) |
| Coin diameter | 15mm～29mm |
| Coin Thickness | 1.8mm～3.0mm |
| Coin capacity | 200pcs |
| Straw box capacity | 200pc(outside diameter is about 7mm) |
| Sensor lifespan | 2 years |
| Dimension | 250mm×105mm×400mm |
| Weight | About 4kg |
Product Details:
About Weiguo
Henan Weiguo Intelligent Technology Co., Ltd, is an innovative technology company in China and is the pillar enterprise of the healthy home business division of Hanwei Electronics (stock number: 300007). Focusing on the complete chain of design, R&D, production and sales of "AirRadio"air quality products, we strive to supply air health service for the human beings in the world.
Hanwei Electronics Group Corporation(Stock no.:300007) founded in 1998, is a trustworthy innovative technology company, and the largest gas sensors and instruments manufacturer in China and listed on China's Growth Enterprise Board in the first batch, devoting ourselves to promise a safe, environmental friendly, healthy and smart working and living environment. Based on IOT industry, Hanwei Electronics will combine sensors, intelligent terminals, communication technology, cloud computing and geographic information IOT technology together closely to create Hanwei cloud so as to establish a complete IOT industry chain. Hanwei Electronics focuses on the customer value oriented, provide perfect solutions for smart city, production safety, environmental protection, health of the people's livelihood.
Our products are sold all over the world, you can rest assured.
