TUYA  Battery Operated WiFi Smoke Alarm Detector With Double Optical Path

TUYA Battery Operated WiFi Smoke Alarm Detector With Double Optical Path

  • Highlight

    OEM WiFi Smoke Alarm Detector

    ,

    RoHS Battery Operated Smoke Alarm

    ,

    Double Optical Path wifi smoke detector

  • Name
    Wireless Smoke Alarm Detector
  • Feature
    Low Power Consumption
  • Alarm Type
    Visual And Audible
  • Color
    White
  • Working Environment
    -10℃~50℃ Humidity: <95%RH
  • Alarming Sound
    ≥85dB
  • Sensor Type
    Photoelectric
  • Alarming Level
    Meet EN14604 Standard
  • OEM/ODM
    Supported
  • E-Mail
    Sales@wgsensor.com
  • WhatsApp
    +8613333637163
  • Place of Origin
    China
  • Brand Name
    WG Sensor™
  • Certification
    CE RoHS
  • Model Number
    JTY-GF-YB037
  • Minimum Order Quantity
    5pcs
  • Price
    USD 10 PC
  • Packaging Details
    Carton, single device
  • Delivery Time
    5-10 working days
  • Payment Terms
    T/T, Western Union, MoneyGram, L/C,
  • Supply Ability
    1000000 pcs per year

TUYA Battery Operated WiFi Smoke Alarm Detector With Double Optical Path

Home Battery Operated WiFi Smoke Alarm Detector With Double Optical Path To Avoid Interference And False Alarm

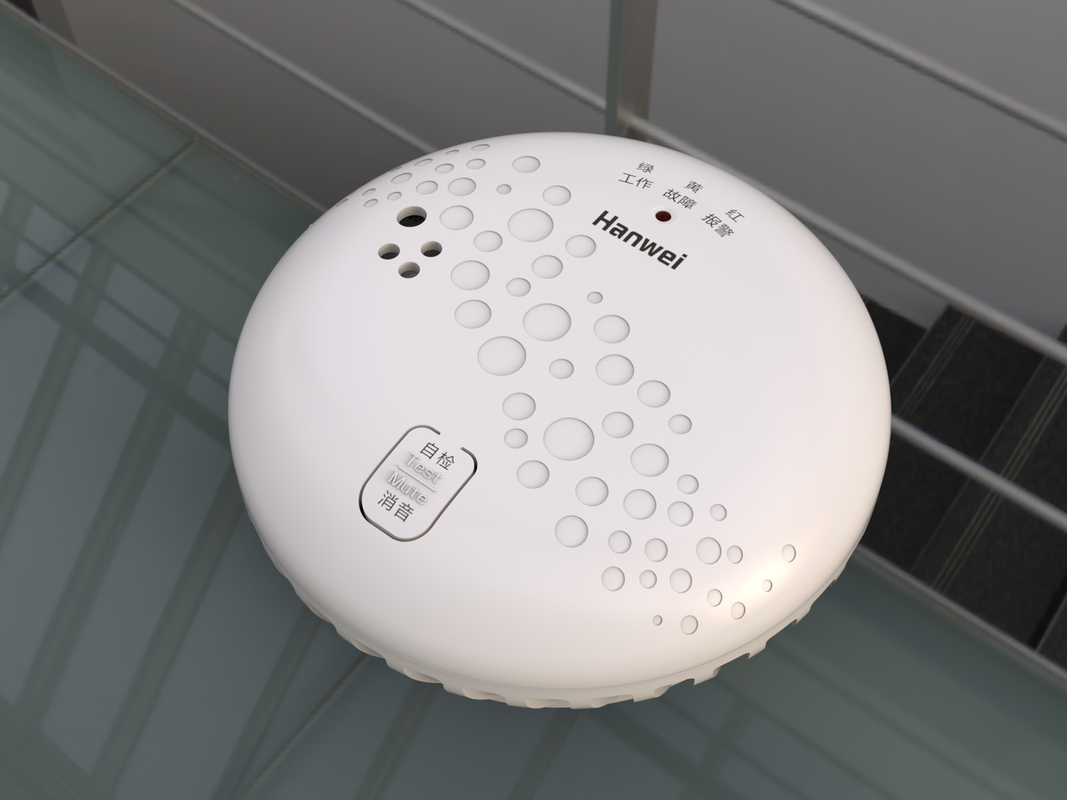

TUYA  Battery Operated WiFi Smoke Alarm Detector With Double Optical Path 0



Product Introduction



YB037, The independent photoinductive smoke fire detector detects fire through the principle of double light path scattering.Using a specially designed photoelectric sensor, the intensity of light scattered in the smoke detector chamber is used to determine whether there is smoke.When the smoke reaches a certain concentration, that is, the light intensity received by the light receiving element reaches a predetermined aperture value, the detector will send out acoustoptic alarm signal, and the red indicator light will blink, and start the buzzer alarm, and the alarm information can be synchronously pushed to the management platform.The product can effectively detect the visible smoke generated by the initial smoldering of fire, so that users can eliminate danger or organize people to evacuate in time. It is suitable for homes, schools, shops, factories, hotels and other places.



Features of the product



Dual optical path design avoid false alarm, fast response

Easy for installation

Low Power Consumption Design

WIFI function

Follow EN14604 standard









Specification



Measuring gas Smoke
Working voltage 3V Battery
Battery 2400mA CR17450 Lithium
Battery life around 1 year
Working Environment Humidity: <95%RH
Alarm sound ≥85dB(3m)
Alarming level Meet EN14604 standard
Alarm method Audio and light
Communication  WIFI
Size φ110nmx42.5mm


Product Details

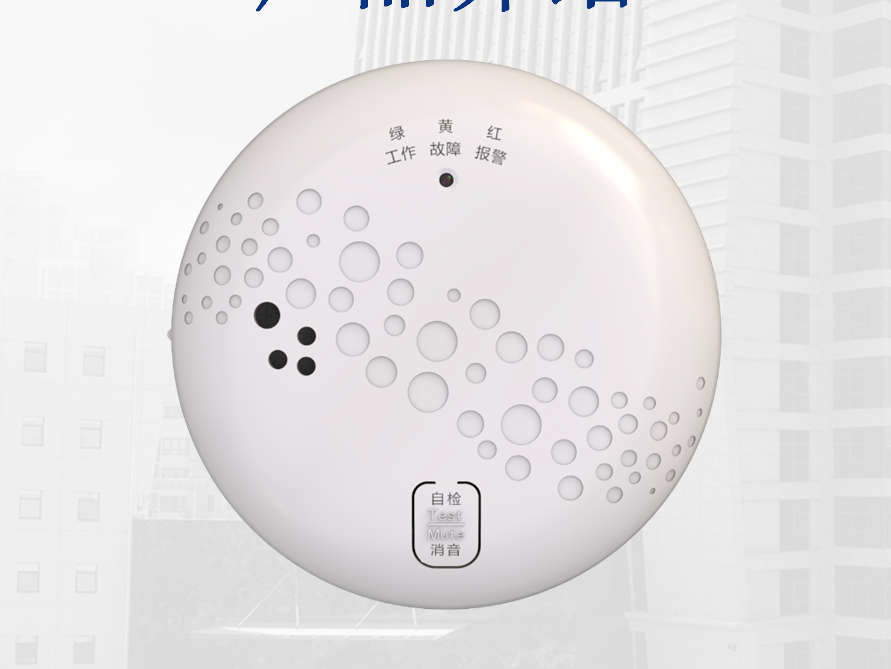

TUYA  Battery Operated WiFi Smoke Alarm Detector With Double Optical Path 1

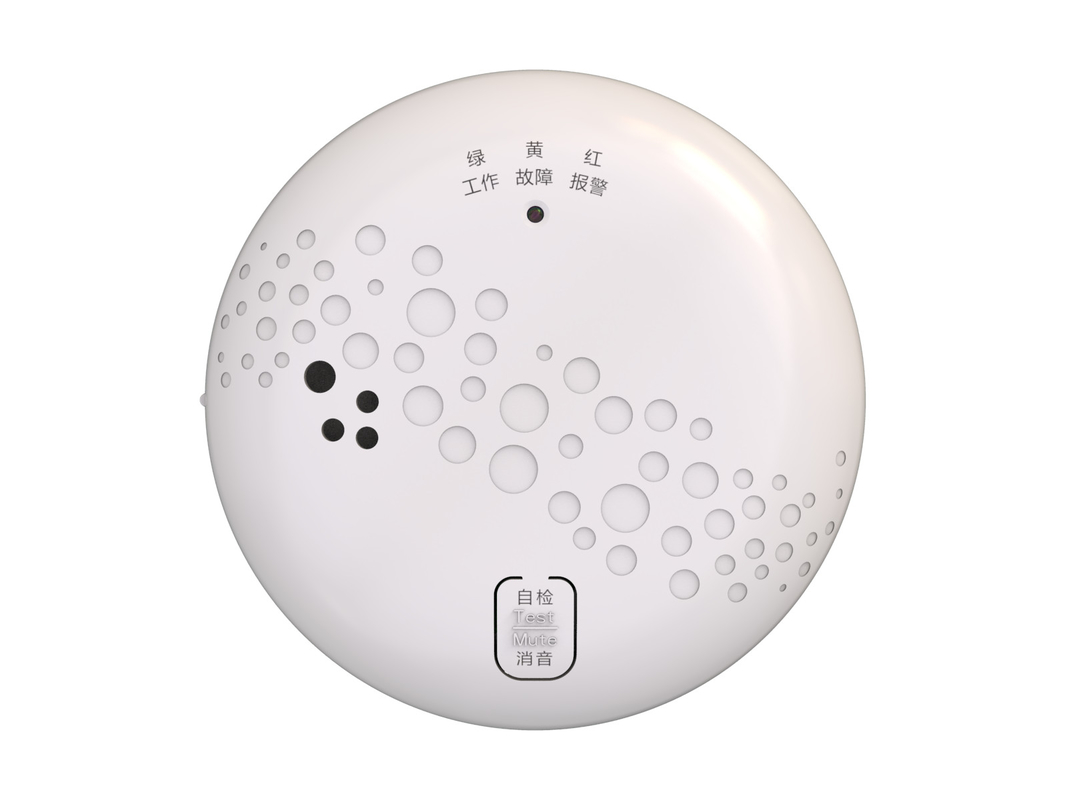

TUYA  Battery Operated WiFi Smoke Alarm Detector With Double Optical Path 2

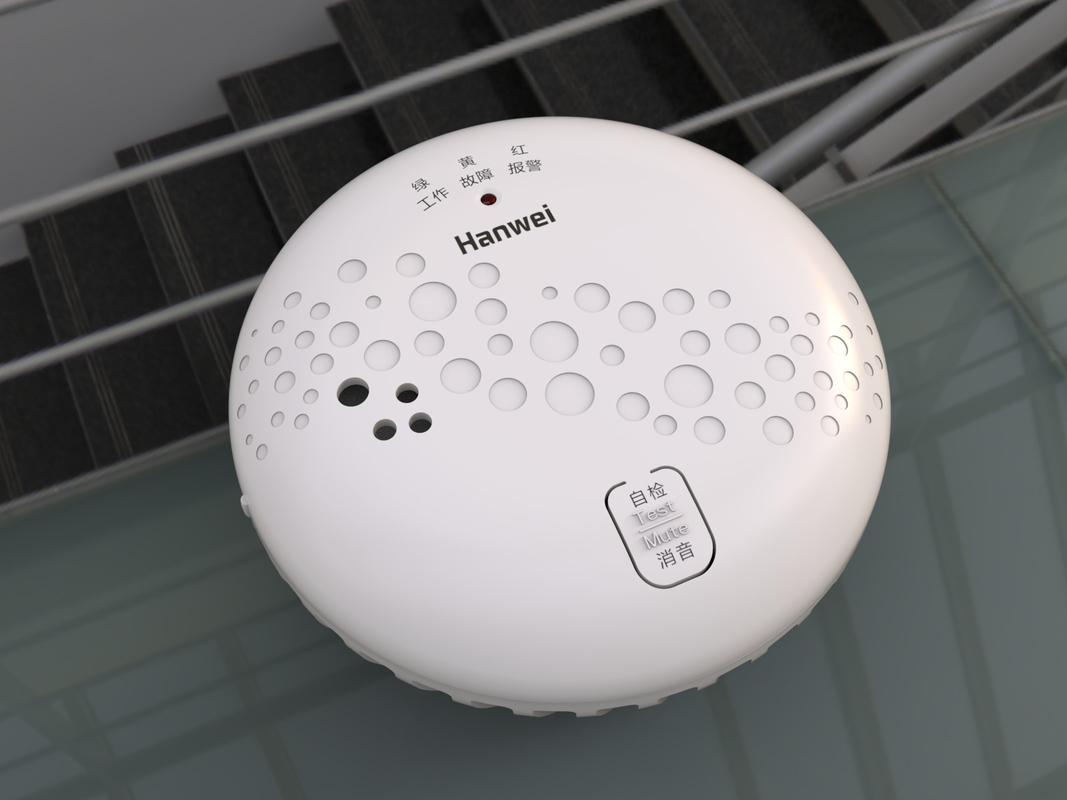

TUYA  Battery Operated WiFi Smoke Alarm Detector With Double Optical Path 3









Company profile:



Henan Weiguo Intelligent Technology Co., LTD., founded in 2015, is an important subsidiary of Hanwei Electronics Group Corporation (Stock no.:300007) in the field of intelligent healthy, safe home and IoT business. Henan Weiguo Intelligent Technology Co., LTD., relying on the core sensor technology, focuses on gas and smoke alarm, air quality monitor, alcohol tester and firefighting products. Based on introduction of featured technology from both Hanwei Electronics Group Corporation and abroad, Henan Weiguo intelligent Technology Co., LTD., has developed into an innovative company with the collection of design, R&D development, production, sales and service. We will always be committed to becoming the leader in intelligent hardware, providing safe, healthy, environmentally friendly and intelligent working and living environment for families and users all over the world.


Intelligent anti-fire system  UV/IR2 flame detector for industrial application 1
Intelligent anti-fire system  UV/IR2 flame detector for industrial application 2

FAQ

Q1: Why do you choose our company?
A1: We are a professional manufacturer, We have seasoned engineers with 20 years' experience in gas detection field. so we can offer products of the same quality at the best prices.

Q2: Can I have a sample order?
A2: The sample order to test are welcomed at the first time.

Q3: What certification do you have?
A3: CE, EN, BSI, UL, ISOD and etc.

Q4: How do I get price information?
A4: Sales representatives are responsible for providing detailed price information within 1 workday after get your inquiry.

Q5: If I order a large quantity, what's the best price?
A5: Please send the detailed enquiry to us, including item model number, quantity for each item, quality requirement, Logo and payment terms etc. We will make an accurate quotation to you at the earliest time.
