1.General Introduction

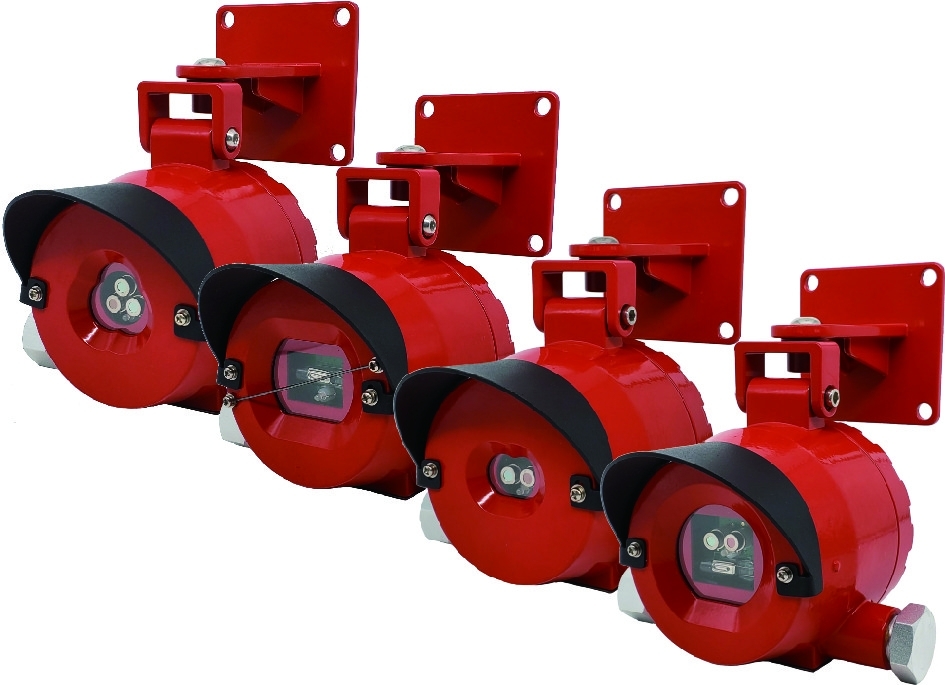

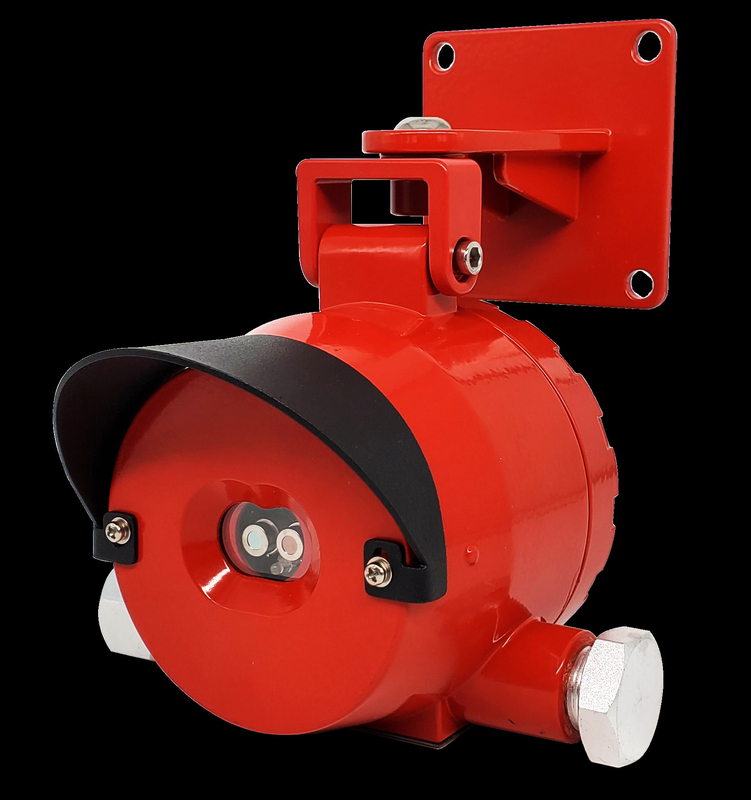

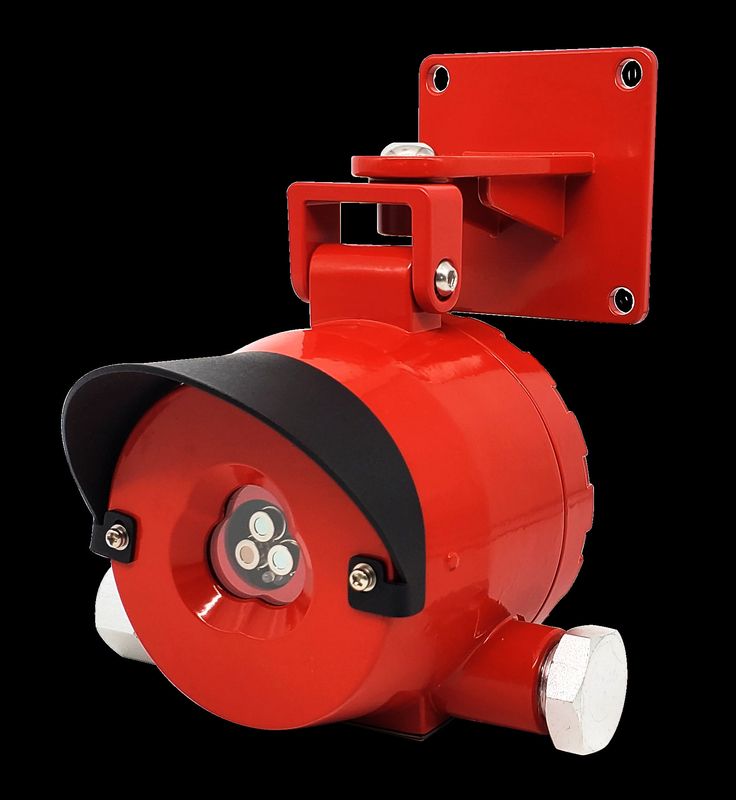

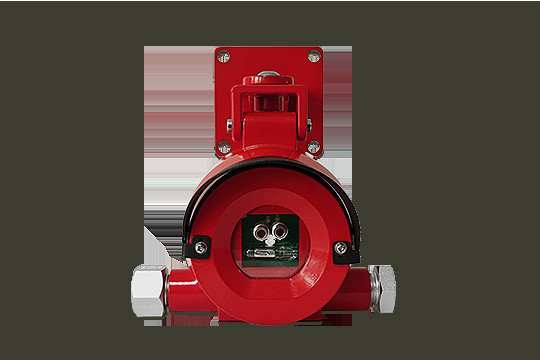

FD10-UV ultraviolet flame detector is a new type of intelligent fire detection equipment. The detector adopts advanced ultraviolet detection technology. By using solar-blind band of ultraviolet, the detector can be used to suppress the interference of sunlight, thus achieving the rapid response and accurate identification of the flame signal.
2.Application
Heavy industry applications, tunnel industry, oil and gas tank farm, power industry and petrochemical industry, etc.
3.Main Characteristics
Detection object: Flame
Response spectrum range: 185~260nm
The longest detection distance can reach 30 meters
Multi-level sensitivity settings to meet the needs of different occasions
Using high-speed, low-consumption and high-performance 32-bit data processing chip
Excellent resistance to radio frequency and electromagnetic interference
Perfect patent algorithm, fast response, high stability, strong anti-false alarm ability
Detection angle of 120°
The longest detection distance can reach 30 meters
Multi-level sensitivity settings to meet the needs of different occasions
Magnetic bar adjusts sensitivity, no need opening the cover on site
Explosion-proof design, suitable for hazardous areas in many types of industrial sites
4.Technical Parameters
| Spectral response | FD10-UV: 185~260nm |
| FD10-IR2: 4.3μm, 5.0μm | |
|
FD10-IR3: 3.8μm, 4.3μm, 5.0μm FD10-UVIR2: 185~260nm, 4.3μm, 5.0μm |
|
| Detection method | Real-time sampling of optical path |
| Display | LED lights |
| Status indication | Green LED flashes to indicate normal operation (the number of flashes every 3 seconds represents the sensitivity level) |
| Red LED always lights to indicate an alarm | |
| Operation method | Magnetic bar, adjust sensitivity (4 levels) |
| Signal output | 4-20mA analog |
| Passive relays (for fault and alarm) | |
| Ex grade | ExdⅡC T6 Gb/ Ex tD A21 |
| Ingress protection | IP66 |
| Input power | DC24V±6V |
| Working current | ≤30mA (DC24V) |
| Installation method | Wall mounted or lifting or holding-pipe |
| Response time |
FD10-IR2: ≤10s |
|
Detection distance |
FD10-UV: 30m, 0.3m×0.3m N-heptane fire |
| FD10-IR2: 50m, 0.3m×0.3m N-heptane fire | |
| RD10-IR3: 50m, 0.3m×0.3m N-heptane fire | |
| FD10-UVIR2: 50m, 0.3m×0.3m N-heptane fire | |
| Working temperature | FD10-UV: -20~60℃ |
| FD10-IR2: -25~70℃ | |
| FD10-IR3: -25~70℃ | |
| FD10-UVIR2: -20~60℃ | |
| Field of view | FD10-UV: 120° |
| FD10-IR2: 100° | |
| FD10-IR3: 100° | |
| FD10-UVIR2: 100°(IR) / 120° (UV) | |
| Weight | 1.5±0.2kg |
| Housing material | Copper-free cast aluminum |
| Cable entry screw | NPT1/2 |
| Working humidity | ≤95%RH (no condensation) |
