Description

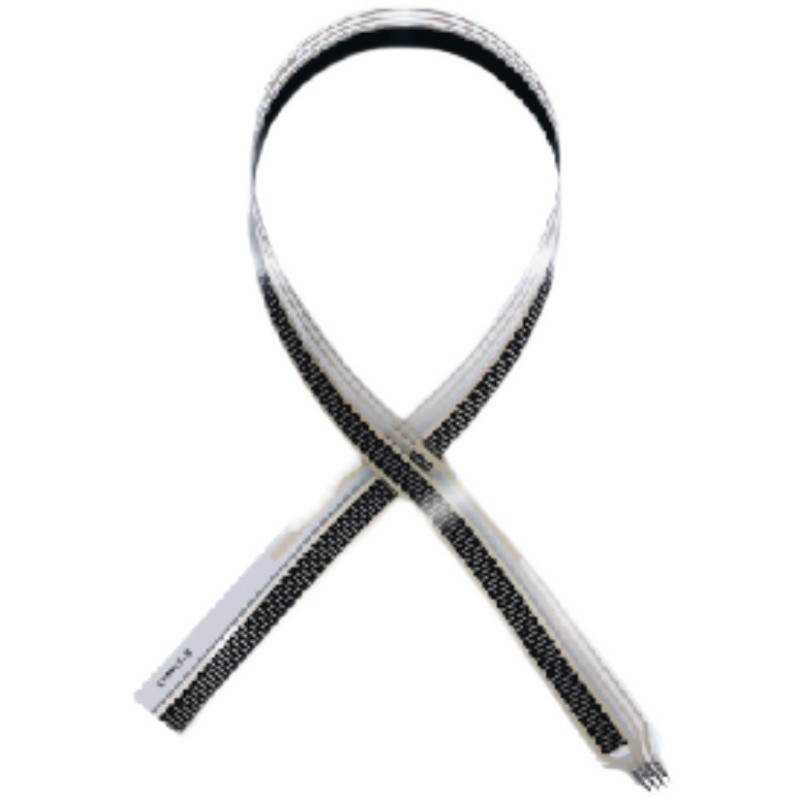

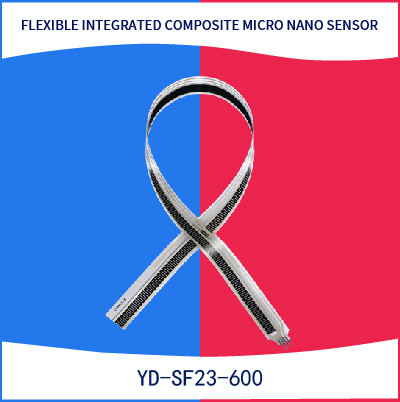

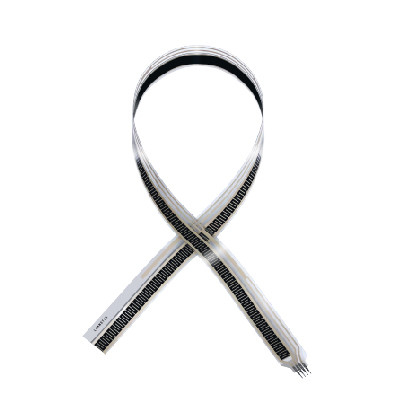

Yd-sf23-600 is a multi-functional flexible sensor independently developed by Henan Weioguo Intelligent Technology Co., LTD based on years of technical accumulation in the field of flexible sensors and flexible hybrid electronics, with independent intellectual property rights. The new composite flexible micro-nano sensor integrates high sensitivity flexible piezoresistive and piezoelectric, uses the piezoresistive sensor to detect the pressure distribution, uses the piezoelectric sensor to realize the dynamic response of highly sensitive signal capture, can simultaneously realize the dynamic/static mechanical information of a wide range, highly sensitive detection.
Features
thickness less than 0.6mm;
Low power consumption, excellent stability;
Fast response speed;
High sensitivity, wide detection range;
The detection scheme is simple and easy to integrate.
Application
It has wide application value in intelligent wear, medical and health detection, intelligent health care and other fields.
Performance Index
| Model | YD-SF23-600 |
| thickness | <0.3mm |
| Dimension | 601.0x23mm |
| Piezoelectric constant D33 | 18~30pC/N |
| Capacitance | 1.5-3.0nF |
| Use of Temperature | -20℃-60℃ |
| Band | <100MHz |
| Durability | >100 million times |
| Connection method | Terminal |
| Electromagnetic interference EMI | Do not produce |
| Electrostatic discharge ESD | Not sensitive |
