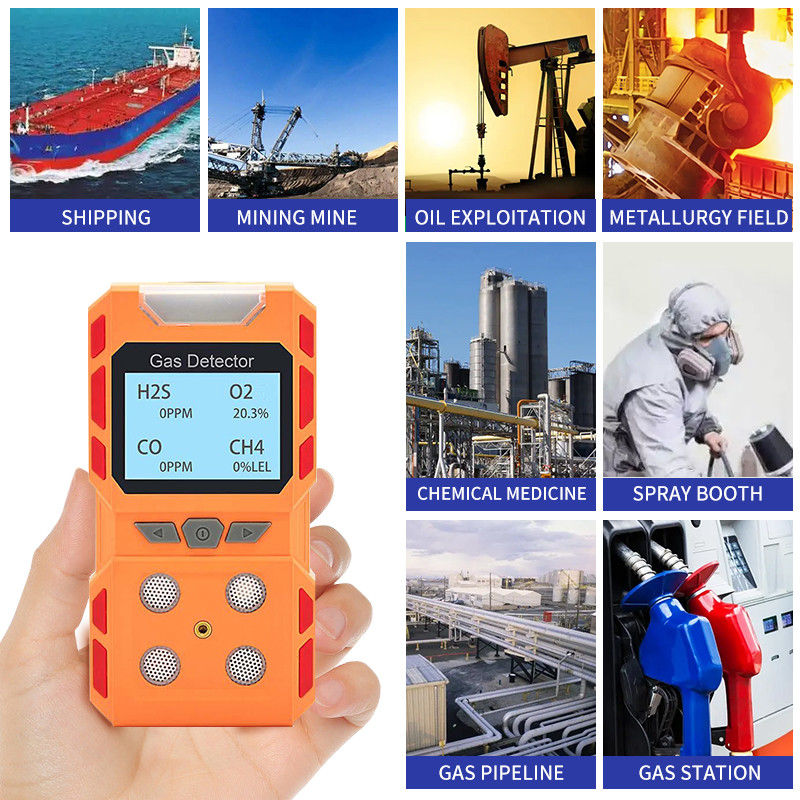

LEL CO H2S O2 multi-4 gases portable gas detector for industrial application
Description:
The portable voice type single gas detector (hereinafter referred to as detector) is a safety device that can continuously detect the concentration of leaked gas . Advanced integrated circuit technology , embeded with microcomputer control , high quality imported gas sensor , excellnet sensitivity and excellent repeatability, using dot matrix LCD monitor, support Chinese and English interface and voice promts , users can quickly understand this product, easy to use and maintain , high strength , high-grad exteriror shell , dustproof , waterproof and explosion-proof.
The detector is widely used in petroleum , chemical , environmental protection , metallurgy , etc. which is necessary to safely monitor toxic and harmful , and explosion industries . The detector can effectively predict of dangerous gas concentration and alarm , ensure the safety of the workers is not threatened , and the production equipment is not damaged.
Features:
High quality imported sensor
Matrix LCD monitor
Human voice prompts
Adjustable alarm levels
Self-diagnostic and self-correction function
Technical parameters:
| Gas type | range | Low alarm point | High alarm point | Resolution | |
| EX | 0-100% LEL | 20% LEL | 50% LEL | 1% LEL | |
| H2S | 0-100ppm | 10ppm | 35ppm | 1ppm | |
| CO | 0-1000ppm | 50ppm | 150ppm | 1ppm | |
| O2 | 0-30% VOL | 19.5% VOL | 23.5% VOL | 0.1% VOL | |
| Please contact the company for other gas combinations | |||||
| Accuracy: | ≤±5% F.S. | ||||
| Indication mode: | high definition LCD screen | ||||
| Working environment: | Temperature -20℃～+50℃; humidity <95%RH condensation | ||||
| Working voltage: | DC3.7V (lithium battery capacity 3000mAh)) | ||||
| Alarming method: | sound , light , vibration | ||||
| Protection level: | Ip65 | ||||
| Appearance size: | 140x73x32mm(LxWxH) | ||||
| Weight: | 120g | ||||
| Ex grade: | Ex ib IIC T4 | ||||
