Stand Alone Smoke CO 2 In 1 Combined Detector Approved EN50291 EN14604

Stand Alone Smoke CO 2 In 1 Combined Detector Approved EN50291 EN14604

Products - Gas Alarm Detector
  • High Light

    Smoke CO 2in1 Combined Detector

    ,

    EN14604 Gas Alarm Detector

    ,

    ABS Plastic 85dB CO Combined Detector

  • Name
    Carbon Monoxide And Smoke Detector
  • Application
    Home Industry School Hospital
  • Feature
    Low Power Consumption
  • Warranty
    2 Year
  • Alarm Type
    Sound+Light Alarm
  • Color
    White
  • Lifespan
    5 Years
  • Working Voltage
    AC90V~265V
  • Alarm Volume
    85dB
  • Net Weight
    Net Weight 120g
  • Sensor Type
    Semiconductor
  • Detecting Range
    0~100% LEL
  • Presetting Alarm
    7% LEL(optional)
  • Working Environment
    Temperature: 0 ~ 40℃ Humidity: <95%RH (No
  • Material
    ABS Plastic
  • OEM/ODM
    Supported
  • E-Mail
    Sales@wgsensor.com
  • WhatsApp
    +8613333637163
  • Place of Origin
    China
  • Brand Name
    WG Sensor™
  • Certification
    CE
  • Model Number
    512
  • Minimum Order Quantity
    99pcs
  • Price
    13USD/1-99pcs~12USD /100+pcs(Negotiable)
  • Packaging Details
    Carton
  • Delivery Time
    5-10 working days
  • Payment Terms
    T/T, Western Union, MoneyGram, L/C
  • Supply Ability
    1000000 pcs per year

Stand Alone Smoke CO 2 In 1 Combined Detector Approved EN50291 EN14604

  • Stand Alone Smoke CO 2 In 1 Combined Detector Approved EN50291 EN14604
  • Stand Alone Smoke CO 2 In 1 Combined Detector Approved EN50291 EN14604
  • Stand Alone Smoke CO 2 In 1 Combined Detector Approved EN50291 EN14604
  • Stand Alone Smoke CO 2 In 1 Combined Detector Approved EN50291 EN14604
  • Stand Alone Smoke CO 2 In 1 Combined Detector Approved EN50291 EN14604
  • Stand Alone Smoke CO 2 In 1 Combined Detector Approved EN50291 EN14604
Get Price Contact Now



Hot Sales Apartment Security System Stand Alone Smoke+Co 2 in 1 Combined Detector Approved /whatsapp:+8618838154222



Product Introduction



The product is a smart carbon monoxide and smoke combo detector ,adopts microprocessor control, the electrochemical carbon monoxide sensor is stable and reliable with low current consumption and small sensitivity drift. mainly well used in the place of carbon monoxide gas leakage and fire place, well guarantee personal safety.





Features of the product



High accurate electrochemical sensor and infrared photoelectric sensor

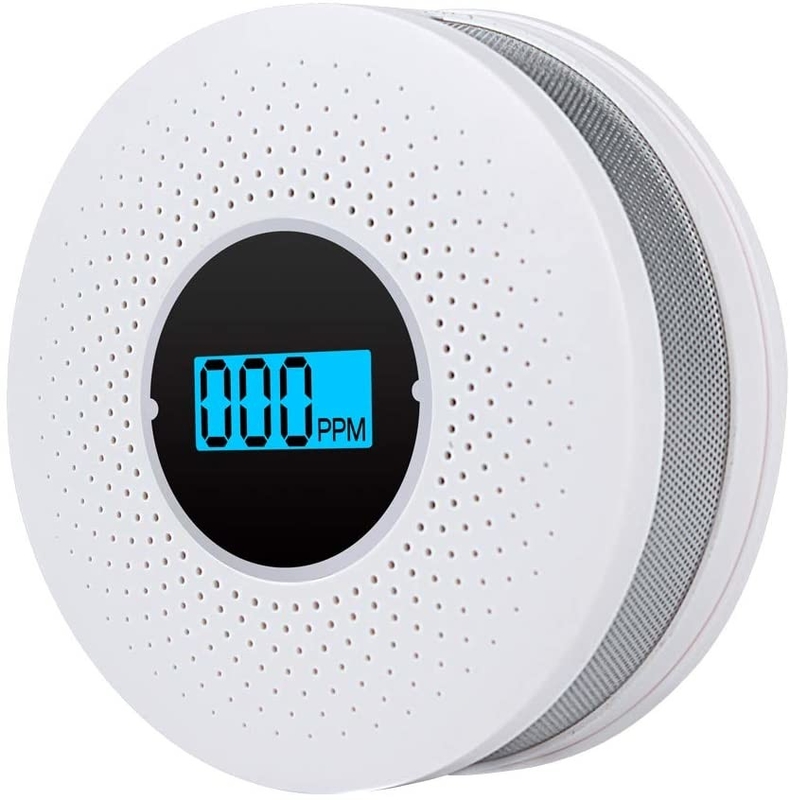

* LCD display concentration PPM

* 3*1.5V AA battery supply

* Ultra-long standby time, low current consumption

* Low-battery warning

* Alarm memory function

* Alarmming pause(Hush Mode)

* Sound & Flash Alarm & LED indicating Alarm

* SMT manufacture technology, reliable stability



Specification



Model                                  512
Target Gas              CO SMOKE
Working Environment

            Temperature: 0 ~ 40 degree Celsius

             Humidity: <95%RH (No Condensation)
Gas Sampling              Natural diffusion
Detecting Range              0~100% LEL
Presetting Alarm Level              7% LEL

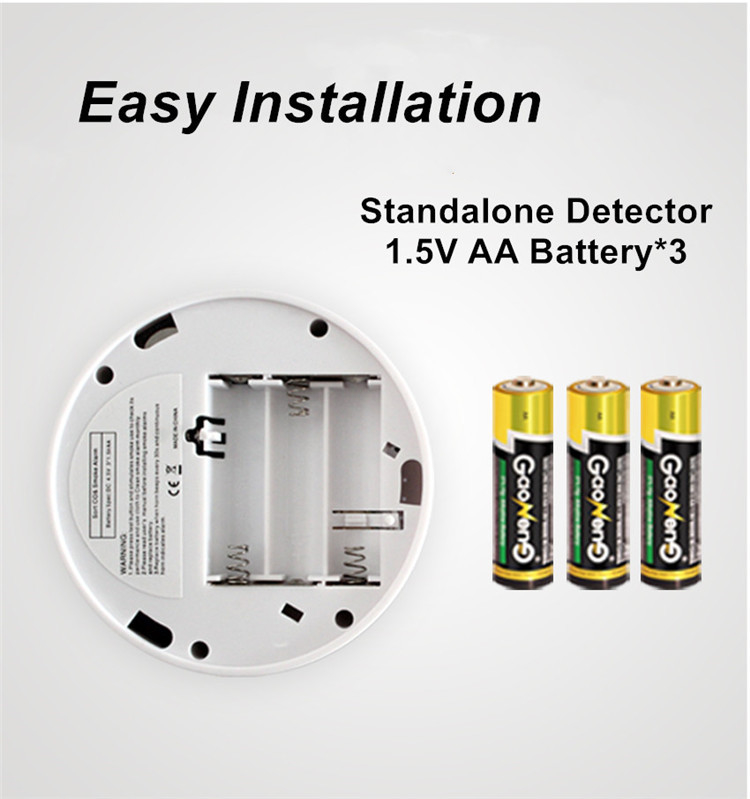

Power supply           3*1.5v AA battery
Static current           <80uA
Alarm current             <30mA
Alarm voice            Light/sound prompt
Weight              120g

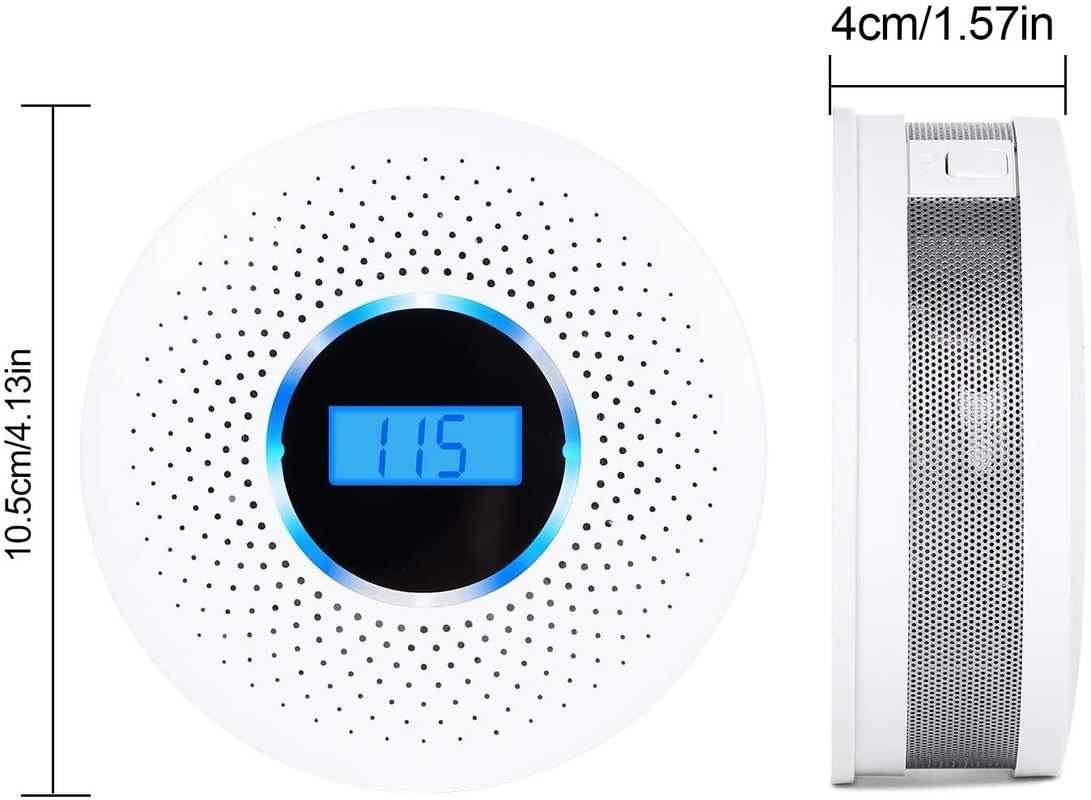

Dimension              104*39mm
Sensor              electrochemical carbon monoxide sensor and Infrared photoelectric sensor
Battery capacity             low battery alarm



Details



Stand Alone Smoke CO 2 In 1 Combined Detector Approved EN50291 EN14604 0

Stand Alone Smoke CO 2 In 1 Combined Detector Approved EN50291 EN14604 1

Stand Alone Smoke CO 2 In 1 Combined Detector Approved EN50291 EN14604 2

Stand Alone Smoke CO 2 In 1 Combined Detector Approved EN50291 EN14604 3

Stand Alone Smoke CO 2 In 1 Combined Detector Approved EN50291 EN14604 4

Manual

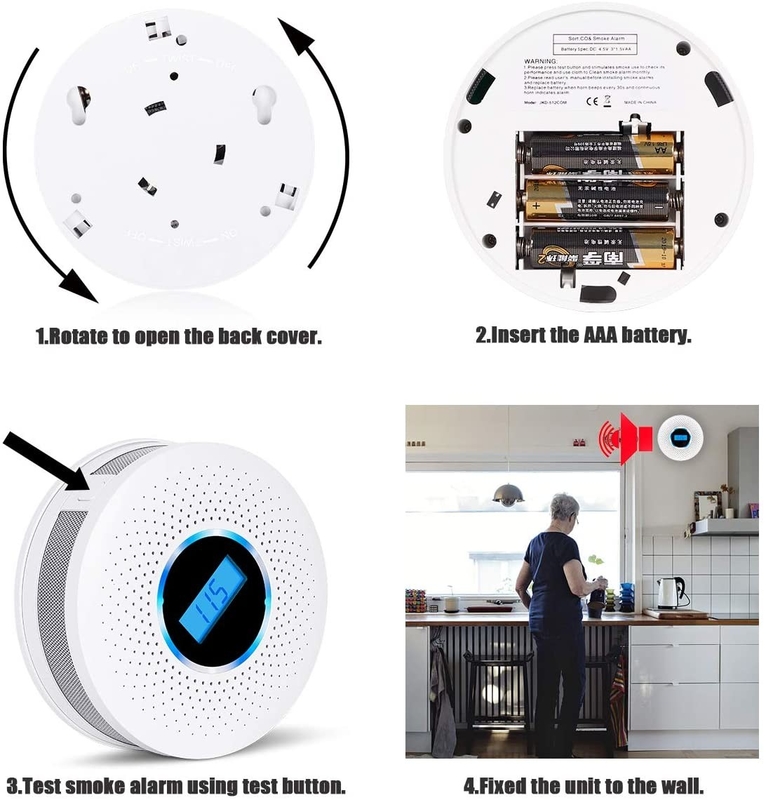

Installation Instructions
Installation location:
1)The detector and gas source should be located in the same indoor space.
2)The detector distance may be 1~3 meters away from the possible gas leak source is the best.
3)The detector should be installed less than 30cm from the ceiling.
Kitchen installation illustration
Stand Alone Smoke CO 2 In 1 Combined Detector Approved EN50291 EN14604 5
Maintenance

1) After storage and long time transport, the first time in use needs electricity aging more than 24 hours in
order to achieve the best performance.
2) During the usage period, activate the self-test at least once six month to confirm that the device works
normally. In the case of safety, please use a known concentrate gas for impacting test to confirm that the
device work normally.
3) It’s suggested to clean the shell of the combustible gas detector frequently to prevent its air hole being
blocked by dust. When cleaning the shell of the device, use clean soft brush or dry fluffy cloth without
detergent, decolorizer and polish. Cut off power supply when cleaning the shell.
4) N1 is designed for indoor use only. Please avoid contacting with rain, moisture, also need to avoid
drop. Do not beat, open or modification it, otherwise it may lead to product failure.
5) The detector should not be used near the volatile substance such as alcohol, hair gel, etc.
If false report caused, please open the ventilation device to make sure the detector return to normal detecting conditions.
6) Under normal circumstance, the service is 5 years. Please replace with new ones if exceed the
lifespan.
