Tuya Intelligent Carbon Monoxide Alarm CO Detector ZigBee EN50291 Certification

Tuya Intelligent Carbon Monoxide Alarm CO Detector ZigBee EN50291 Certification

Products - Gas Alarm Detector
  • High Light

    CO Carbon Monoxide Alarm Detector Intelligent

    ,

    ZigBee Alarm CO detector

    ,

    EN50291 Certification CO Alarm Detector

  • Name
    Carbon Monoxide And Smoke Detector
  • Application
    Home Industry School Hospital
  • Feature
    Low Power Consumption
  • Warranty
    2 Year
  • Alarm Type
    Sound+Light Alarm
  • Color
    White
  • Lifespan
    10 Years
  • Operation Voltage
    6V Battery (4pcs1.5V Battery)
  • Alarm Volume
    85dB
  • App
    TUYA Smart /Smart Life
  • Sensor Type
    Semiconductor
  • Detecting Range
    0~100% LEL
  • Presetting Alarm
    7% LEL(optional)
  • Working Environment
    Temperature: 0 ~ 40℃ Humidity: <95%RH (No
  • Material
    ABS Plastic
  • Executive Standard
    EN50291-1: 2018
  • OEM/ODM
    Supported
  • E-Mail
    Sales@wgsensor.com
  • WhatsApp
    +8613333637163
  • Place of Origin
    China
  • Brand Name
    WG Sensor™
  • Certification
    CE
  • Model Number
    830
  • Minimum Order Quantity
    99pcs
  • Price
    28USD/1-99pcs~27USD /100+pcs(Negotiable)
  • Packaging Details
    Carton
  • Delivery Time
    5-10 working days
  • Payment Terms
    T/T, Western Union, MoneyGram, L/C
  • Supply Ability
    1000000 pcs per year

Tuya Intelligent Carbon Monoxide Alarm CO Detector ZigBee EN50291 Certification

  • Tuya Intelligent Carbon Monoxide Alarm CO Detector ZigBee EN50291 Certification
  • Tuya Intelligent Carbon Monoxide Alarm CO Detector ZigBee EN50291 Certification
  • Tuya Intelligent Carbon Monoxide Alarm CO Detector ZigBee EN50291 Certification
  • Tuya Intelligent Carbon Monoxide Alarm CO Detector ZigBee EN50291 Certification
  • Tuya Intelligent Carbon Monoxide Alarm CO Detector ZigBee EN50291 Certification
  • Tuya Intelligent Carbon Monoxide Alarm CO Detector ZigBee EN50291 Certification
Get Price Contact Now

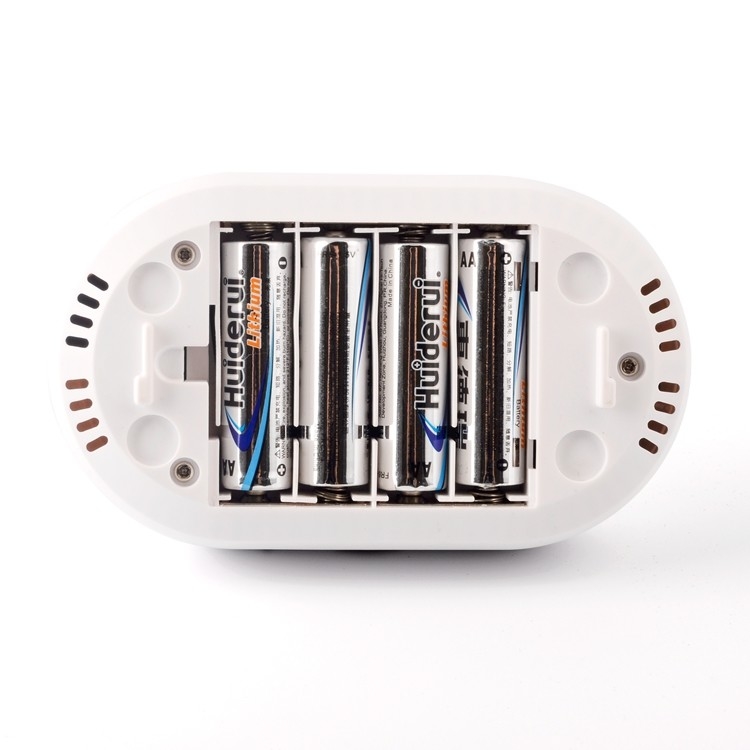

. Operation voltage: 6V battery (4pcs1.5V battery)

2.Battery life: 2 years replaceable(如果选择10年电池,价格比现在的贵16元)
3. Standby current: 30uA
4. Wake up cycle: 12 seconds
5. Low voltage threshold: 5.6V
6. Sound intensity: ≥85dB / 3m

7.Wireless frequency: 2.4GHZ
Wireless detection distance:15-25m indoor, 150m for open area

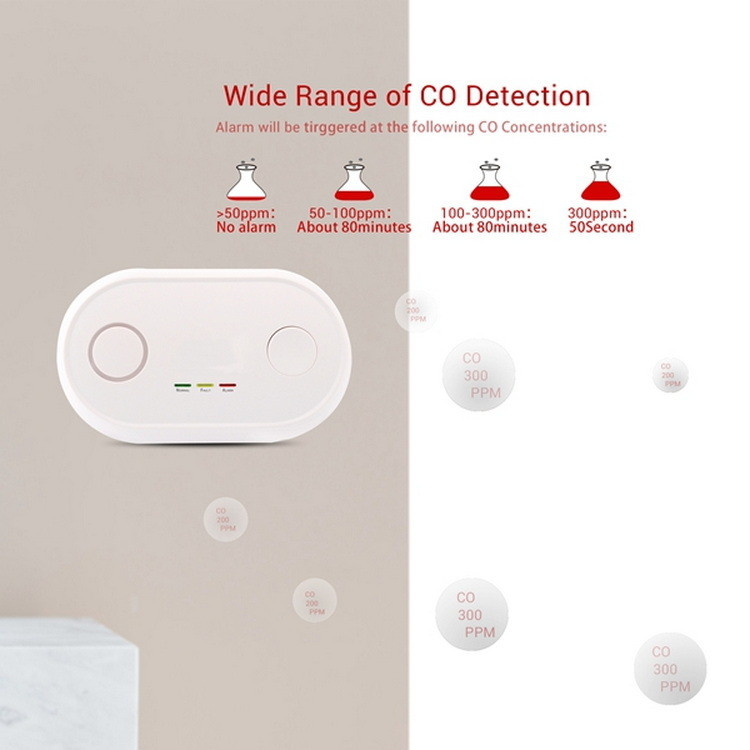

8 CO: Alarm density:
50ppm,alarms not activate within 120 minutes
50-100ppm,alarms within 80 minutes
100-300ppm,alarm with 30 minutes
300ppm,alarm within 50seconds

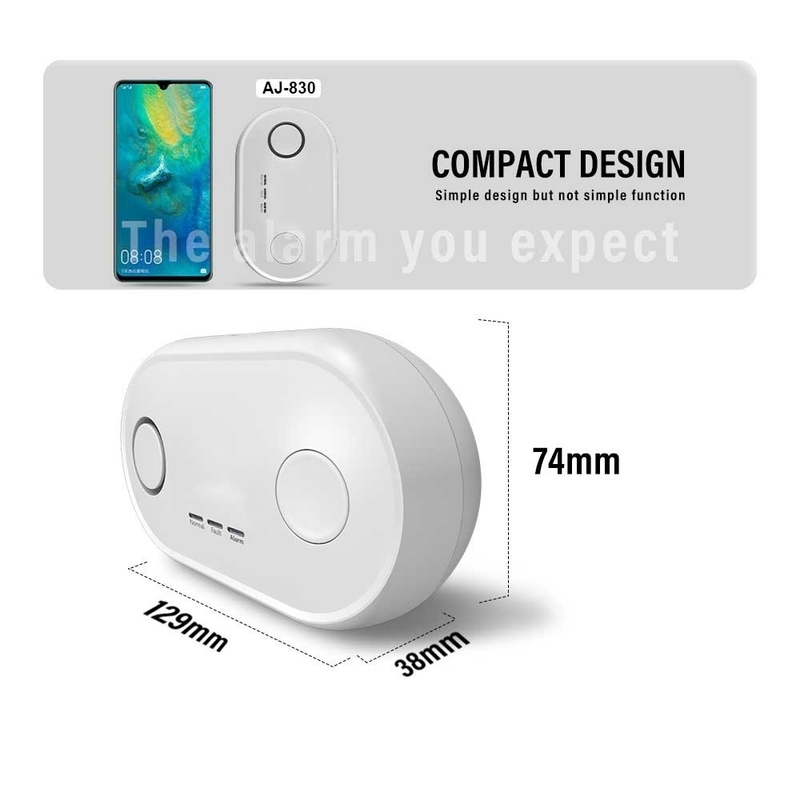

9.Product size : Φ120*650*35mm

10.G.W:240g

11App: TUYA Smart /Smart Life

12,Executive standard: EN50291-1: 2018



Specification



Model                                  830
Target Gas              CO
Working Environment

            Temperature: 0 ~ 40 degree Celsius

             Humidity: <95%RH (No Condensation)
Gas Sampling              Natural diffusion
Detecting Range              0~100% LEL
Presetting Alarm Level              7% LEL
Power supply         6V battery (4pcs1.5V battery)
Static current           <80uA
Alarm current             <30mA
Alarm voice            Light/sound prompt
Weight              120g
Dimension              104*39mm
Sensor              electrochemical carbon monoxide sensor and Infrared photoelectric sensor
Battery capacity             low battery alarm



Details



Tuya Intelligent Carbon Monoxide Alarm CO Detector ZigBee EN50291 Certification 0

Tuya Intelligent Carbon Monoxide Alarm CO Detector ZigBee EN50291 Certification 1



Tuya Intelligent Carbon Monoxide Alarm CO Detector ZigBee EN50291 Certification 2

Tuya Intelligent Carbon Monoxide Alarm CO Detector ZigBee EN50291 Certification 3

Manual



Installation Instructions
Installation location:
1)The detector and gas source should be located in the same indoor space.
2)The detector distance may be 1~3 meters away from the possible gas leak source is the best.
3)The detector should be installed less than 30cm from the ceiling.
Kitchen installation illustration
Tuya Intelligent Carbon Monoxide Alarm CO Detector ZigBee EN50291 Certification 4
Maintenance

1) After storage and long time transport, the first time in use needs electricity aging more than 24 hours in
order to achieve the best performance.
2) During the usage period, activate the self-test at least once six month to confirm that the device works
normally. In the case of safety, please use a known concentrate gas for impacting test to confirm that the
device work normally.
3) It’s suggested to clean the shell of the combustible gas detector frequently to prevent its air hole being
blocked by dust. When cleaning the shell of the device, use clean soft brush or dry fluffy cloth without
detergent, decolorizer and polish. Cut off power supply when cleaning the shell.
4) N1 is designed for indoor use only. Please avoid contacting with rain, moisture, also need to avoid
drop. Do not beat, open or modification it, otherwise it may lead to product failure.
5) The detector should not be used near the volatile substance such as alcohol, hair gel, etc.
If false report caused, please open the ventilation device to make sure the detector return to normal detecting conditions.
6) Under normal circumstance, the service is 5 years. Please replace with new ones if exceed the
lifespan.
