Interconnection Household Smoke Detector AS3786 EN14604 Wireless

Interconnection Household Smoke Detector AS3786 EN14604 Wireless

Products - Smoke Alarm Detector
  • High Light

    Interconnection Household smoke detector

    ,

    Wireless Smoke Alarm Detector

    ,

    AS3786 Smoke Alarm Detector

  • Name
    Wireless Interconnection Smoke Detector
  • Application
    Smoke Alarm
  • Feature
    10 YEARS BATTERY
  • Warranty
    3 Year
  • Alarm Type
    Sound+Light Alarm
  • Color
    White
  • Lifespan
    10 Years
  • Working Voltage
    DC3V Bulit-in Lithium Battery(CR 123A)
  • Alarm Volume
    ﹥85dB/3m
  • Net Weight
    0.14KG
  • Low Voltage Threshold
    2.7V
  • RF Distance
    >200m (open Area)
  • Alarm Mode
    LED & Buzzer
  • Product Size
    Φ110mm×H42mm
  • Execute Criterion
    EN14604:2005 / AC:2008 AS3786:2014
  • OEM/ODM
    Supported
  • E-Mail
    Sales@wgsensor.com
  • WhatsApp
    +8613333637163
  • Place of Origin
    China
  • Brand Name
    WG Sensor™
  • Certification
    CE , RoHS, EN UL
  • Minimum Order Quantity
    15/pcs
  • Price
    20USD/1-100pcs~18USD /101+pcs(Negotiable)
  • Packaging Details
    Carton
  • Delivery Time
    5-10 working days
  • Payment Terms
    T/T, Western Union, MoneyGram, L/C
  • Supply Ability
    1000000 pcs per year

Interconnection Household Smoke Detector AS3786 EN14604 Wireless

  • Interconnection Household Smoke Detector AS3786 EN14604 Wireless
  • Interconnection Household Smoke Detector AS3786 EN14604 Wireless
  • Interconnection Household Smoke Detector AS3786 EN14604 Wireless
  • Interconnection Household Smoke Detector AS3786 EN14604 Wireless
  • Interconnection Household Smoke Detector AS3786 EN14604 Wireless
  • Interconnection Household Smoke Detector AS3786 EN14604 Wireless
Get Price Contact Now



                                                                  Comply with the latest Australian regulations



                                                                     Comply with the latest UK legislation



                              The product is in line with Dutch legislation requiring households to install smoke sensors on July 1

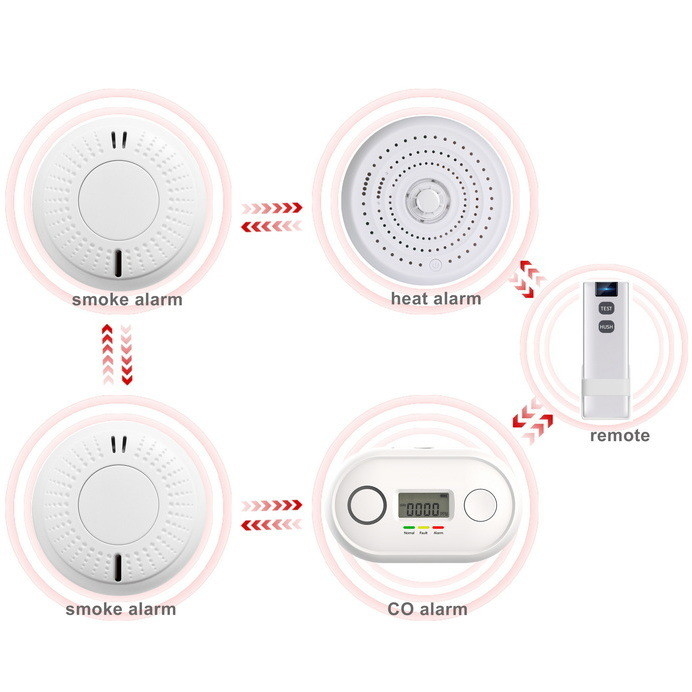

Our interconnected products with different functions (smoke detector/carbon monoxide/temperature sensor/under-pillow vibrator for the disabled/audible and visual alarm, etc.) can be connected together to give an alarm, and all products will give an alarm

                                   Whatsapp:+8618838154222



Product introduction



AS3786 EN14604 Wireless Interconnection smoke detector Household smoke detector

10 years lifespan DC 3V lithium battery powered.

When one alarm sounds, all alarms will sound

Suggested to connect 20 pcs (operation) in one group

433MHz Wireless interconnection frequency,

Big button for easy test and hush and locate

Interlinked with the wireless heat detector, CO detector, remote controller, vibration detector, siren, etc.

WIFI Interconnected optional for controlled by Mobile APP





Features of the product



Working Voltage:DC3V bulit-in lithium battery(CR 123A) ,

Battery life:10 years

Standby current:﹤10uA

Alarm current:﹤60mA

working temprature :-10C~+50C

Relative Humidity:≤95%RH

Wireless frequency: 433.92 Mhz GFSK

Low voltage threshold:2.7V

RF Distance: >200m (open area)

Alarm mode:LED & Buzzer

big test button OR remote for easy Recommended monthly testing and hush

Alarm sound:﹥85dB/3m

Net weight: 0.14KG

product size : Φ110mm×H42mm

Execute Criterion:EN14604:2005 / AC:2008 AS3786:2014



Details



Interconnection Household Smoke Detector AS3786 EN14604 Wireless 0





Interconnection Household Smoke Detector AS3786 EN14604 Wireless 1

Interconnection Household Smoke Detector AS3786 EN14604 Wireless 2
Installation Instructions
Installation location:
1)The detector and gas source should be located in the same indoor space.
2)The detector distance may be 1~3 meters away from the possible gas leak source is the best.
3)The detector should be installed less than 30cm from the ceiling.
Kitchen installation illustration

Maintenance

1) After storage and long time transport, the first time in use needs electricity aging more than 24 hours in
order to achieve the best performance.
2) During the usage period, activate the self-test at least once six month to confirm that the device works
normally. In the case of safety, please use a known concentrate gas for impacting test to confirm that the
device work normally.
3) It’s suggested to clean the shell of the combustible gas detector frequently to prevent its air hole being
blocked by dust. When cleaning the shell of the device, use clean soft brush or dry fluffy cloth without
detergent, decolorizer and polish. Cut off power supply when cleaning the shell.
4) N1 is designed for indoor use only. Please avoid contacting with rain, moisture, also need to avoid
drop. Do not beat, open or modification it, otherwise it may lead to product failure.
5) The detector should not be used near the volatile substance such as alcohol, hair gel, etc.
If false report caused, please open the ventilation device to make sure the detector return to normal detecting conditions.
6) Under normal circumstance, the service is 5 years. Please replace with new ones if exceed the
lifespan.
